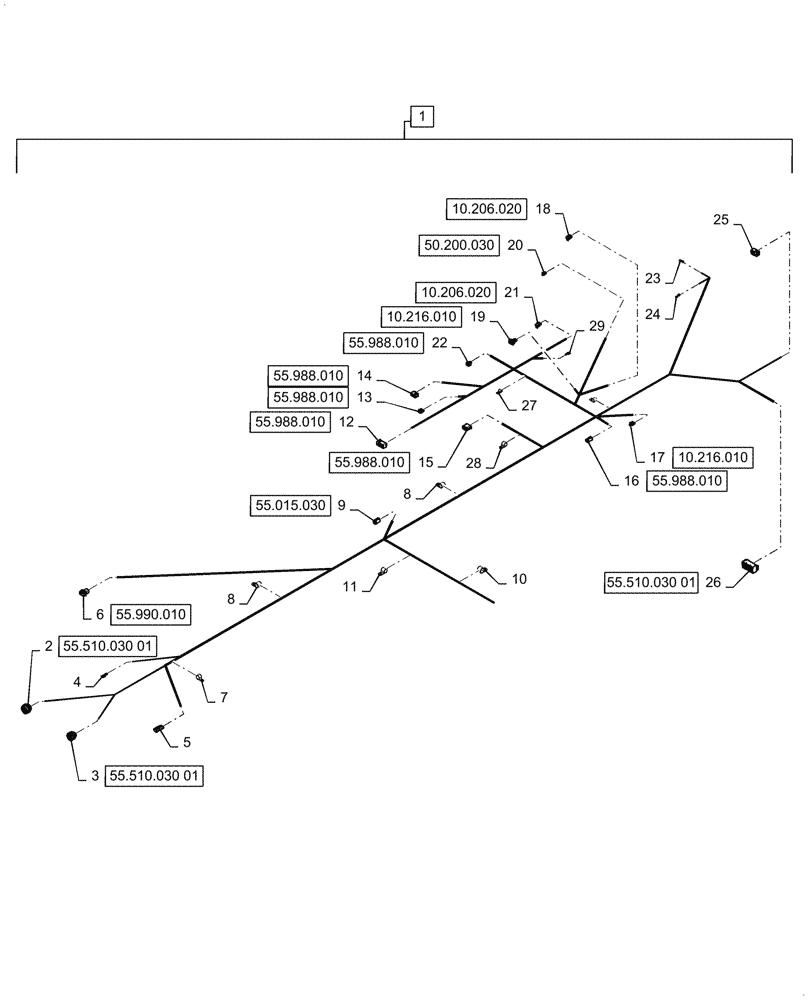

Запчасти Case 521G (55.015.020[01]) - ENGINE & REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47892929

WIRE HARNESS

Engine & Rear Chassis, Incl 2 - 28

1шт.

2

87696948

MULTIPOLE CONNECTOR,Male, 29 Pole

Engine to Cab

1шт.

2

87704524

ELEC CONNECTOR,Pin, Size 12

Cavities, 1, 3

2шт.

2

87702681

TERMINAL

Cavities, 5 - 17, 21, 22, 25, 26, 28

18шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavities, 2, 4, 19

3шт.

2

84807680

PLUG

Cavities, 18, 29, 23, 24, 27, 29

6шт.

3

87703931

ELEC CONNECTOR

Engine to Cab 2

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

14шт.

4

84401295

TERMINAL

Cab Power

1шт.

5

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

High Pressure Switch

1шт.

5

87688814

TERMINAL

2шт.

5

87688710

MULTIPOLE CONNECTOR,Female, 2 Pole

1шт.

5

87688862

LOCKING TAB

Wedge Lock

1шт.

6

87700321

ELEC CONNECTOR,Female, 8 Cavities

Engine to Hood

1шт.

6

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

8шт.

6

84806919

PLUG,Wedge Lock

Wedge Lock

1шт.

7

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

8

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

9

87694112

ELEC CONNECTOR,Female, 6 Pole

Fan Speed Sensor

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

5шт.

9

87694150

LOCKING TAB,Wedge Lock

1шт.

10

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

1шт.

11

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

1шт.

12

47421681

ELEC CONNECTOR

Denox Control Unit

1шт.

12

84152576

TERMINAL

Cavities, 2 - 4, 8 - 12

8шт.

12

84129571

PLUG

Cavities, 1, 5 - 7

4шт.

13

84062580

CONNECTOR, ELEC

Inline to Def Level & Temperature

1шт.

13

84300195

TERMINAL

3шт.

14

84146685

WIRE CONNECTOR,Female, 3 Cavities

SCR Tank Heating Valve

1шт.

14

84152576

TERMINAL

Cavities, 1, 3

2шт.

14

84129571

PLUG

Cavity, 2

1шт.

15

87695592

CONTACT HOUSING,Female, 12 Pole

Inline to SCR Sensors Harness

1шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities, 1, 4 - 12

10шт.

15

84068583

PLUG,12 - 16 Ga, White

Cavities, 2, 3

2шт.

15

87695651

LOCKING TAB,Wedge Lock

1шт.

16

87694153

CONTACT HOUSING,Female, 4 Cavities

Inline to DEF Quality Sensor

1шт.

16

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

4шт.

16

84074640

LOCKING TAB,Wedge Lock

1шт.

17

82012083

WIRE CONNECTOR,Female

Fuel Level

1шт.

17

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

18

87679438

WIRE CONNECTOR,Female

Filter Heater

1шт.

18

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

2шт.

19

87709663

ELEC CONNECTOR,Female, 3 Cavities

Water in Fuel

1шт.

19

87694668

ELEC CONNECTOR

3шт.

20

87687239

CONTACT HOUSING,Female, 1 Pole

AC Clutch

1шт.

20

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

1шт.

21

87679438

WIRE CONNECTOR,Female

Water Seperator Heater

1шт.

21

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

2шт.

22

84532147

ELEC CONNECTOR,Female, 2 Cavities

Upstream of SCR Temperature Sensor

1шт.

22

84130602

TERMINAL CONNECTOR

2шт.

23

84426117

TERMINAL

Back-Up Alarm

1шт.

24

84426117

TERMINAL

Back-Up Alarm

1шт.

25

84152563

ELEC CONNECTOR

Turbo Interface Wiring Harness

1шт.

25

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Cavities, 1, 2, 5, 6

4шт.

25

84129571

PLUG

Cavities, 3, 4, 7

3шт.

26

84300197

ELEC CONNECTOR

ECU Connector

1шт.

26

84300195

TERMINAL

Cavities, 1, 3, 5, 7 - 10, 13, 15, 16, 19, 20, 23, 25 - 28, 31, 32, 37, 39, 40, 43, 45 - 47, 49, 50, 52, 60, 61, 63, 66, 68, 69, 72 - 75, 79, 80, 83 - 85, 88 - 90, 96

48шт.

27

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

28

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

29

84426120

TERMINAL

Water in Fuel Ground

1шт.
