Запчасти Case 521G (55.015.010[02]) - ENGINE & REAR CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

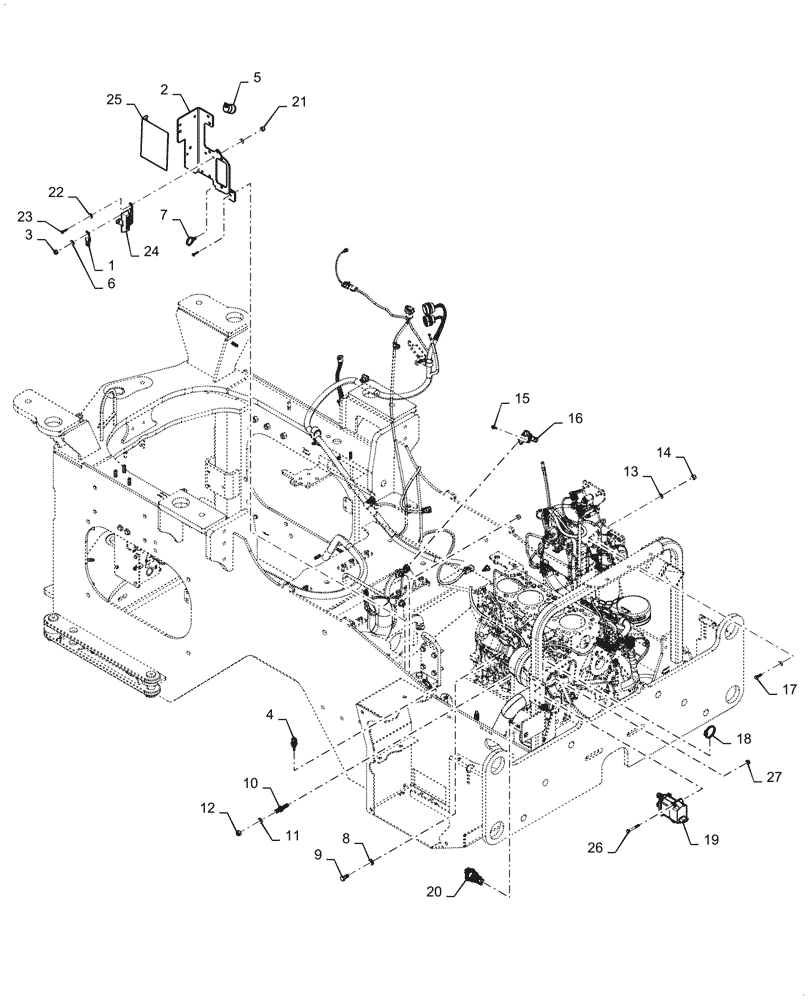

Схема запчастей Case 521G - (55.015.010[02]) - ENGINE & REAR CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS
27
13
23
18
12
2
8
14
4
24
16
3
15
17
5
1
9
19
26
20
11
25
21
7
6
22
10

Артикул

Название

Примечание

Количество

1

440572A1

FUSE,100A, Megaval

1шт.

2

47648584

Bracket, GEP Mount

1шт.

3

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

4

84574743

SENSOR

Temperature

1шт.

5

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

6

892-11008

LOCK WASHER,8mm ID

2шт.

7

87668737

CABLE TIE,203.2mm L, Nylon, Black

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

9

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

10

L127553

STUD

.375 - 16, M12 x 1.75mm

2шт.

11

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

12

L127555

NUT,Hex, 3/8" - 16

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

15

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

16

87482355

SENSOR

Humidity

1шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

19

47686204

RELAY

Battery Disconnect, 12V - 24V, 250A

1шт.

20

47729268

ROTARY SWITCH

Disconnect

1шт.

21

832-10406

NUT,M6 x 1, Cl 8

3шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9шт.

23

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

6шт.

24

440038A1

JUNCTION BLOCK

Fuse Block

1шт.

25

47689120

BRACKET

Relay Decal

1шт.

26

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

27

824-1408

NUT,M8 x 1.25, Cl 10

2шт.

Выбрано товаров: 27
