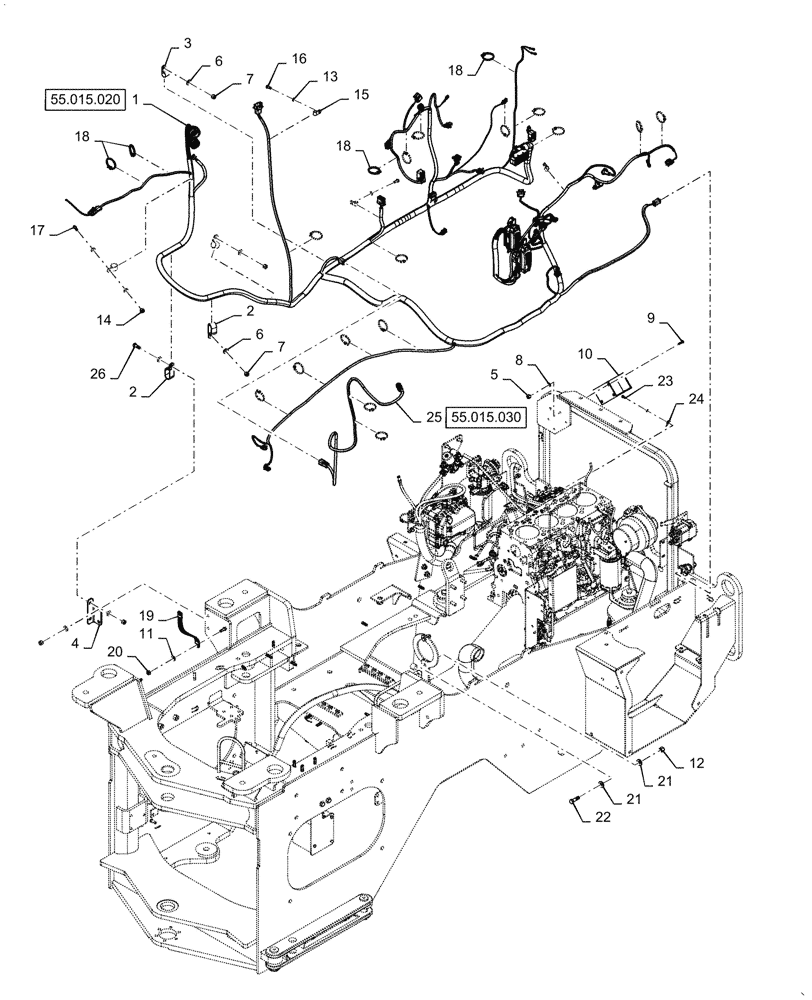

Запчасти Case 521G (55.015.010[01]) - ENGINE & REAR CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47892929

WIRE HARNESS

Engine & Rear Chassis

1шт.

2

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

3

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

4

47871377

BRACKET

Harness Routing

1шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

12шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

11шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9шт.

9

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

10

D121972

ALARM

Back-Up

1шт.

11

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

12

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

15

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

17шт.

19

L126051

GROUND STRAP

1шт.

20

253347A1

NUT,Hex, M10 x 1.5

2шт.

21

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

22

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

23

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

24

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

25

47864996

WIRE HARNESS

Fan

1шт.

26

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
