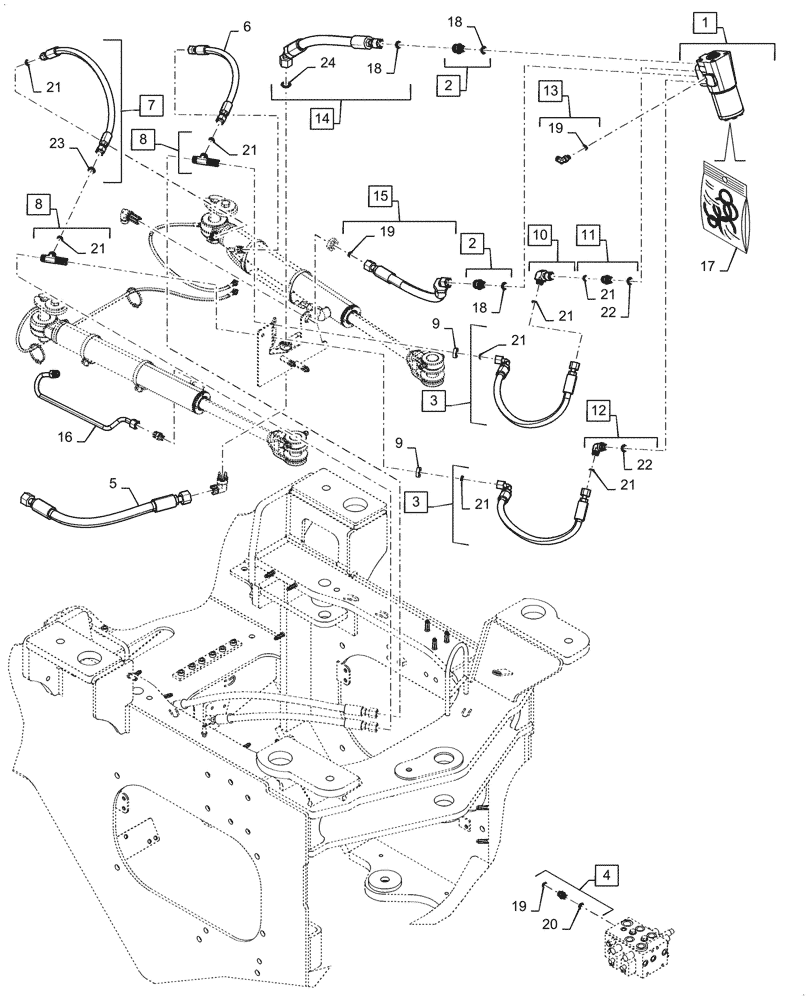

Запчасти Case 521G (41.216.020) - STEERING CYLINDER LINE INSTALLATION (41) - STEERING

1

84168607

HYDRAULIC VALVE

Orbitol Valve, Incl 17

1шт.

2

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 18

2шт.

3

47870849

HOSE

Steering Cylinder, 642mm L, Incl 21

2шт.

4

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 19, 20

1шт.

5

87476356

HOSE ASSY.

Return Relief to Filter, 582mm L

1шт.

6

87668580

HOSE ASSY.

Steering, Left Rod, 641mm L

1шт.

7

47499270

HYDRAULIC HOSE

Steering, Left Base, 798mm L, Incl 21, 23

1шт.

8

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 21

2шт.

9

701-903

NUT,13/16" - 16

2шт.

10

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 21

1шт.

11

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 21, 22

1шт.

12

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 21, 22

1шт.

13

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 19

1шт.

14

47725412

HOSE

Steering, Return, 504mm L, Incl 18, 24

1шт.

15

47722930

HOSE

Steering, Pressure459mm L, Incl 19

1шт.

16

84407465

RIGID TUBE

Steering, Cylinder, 530mm L

1шт.

17

84484577

SEAL KIT

Service Seal Kit for Ref 1

1шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

20

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
