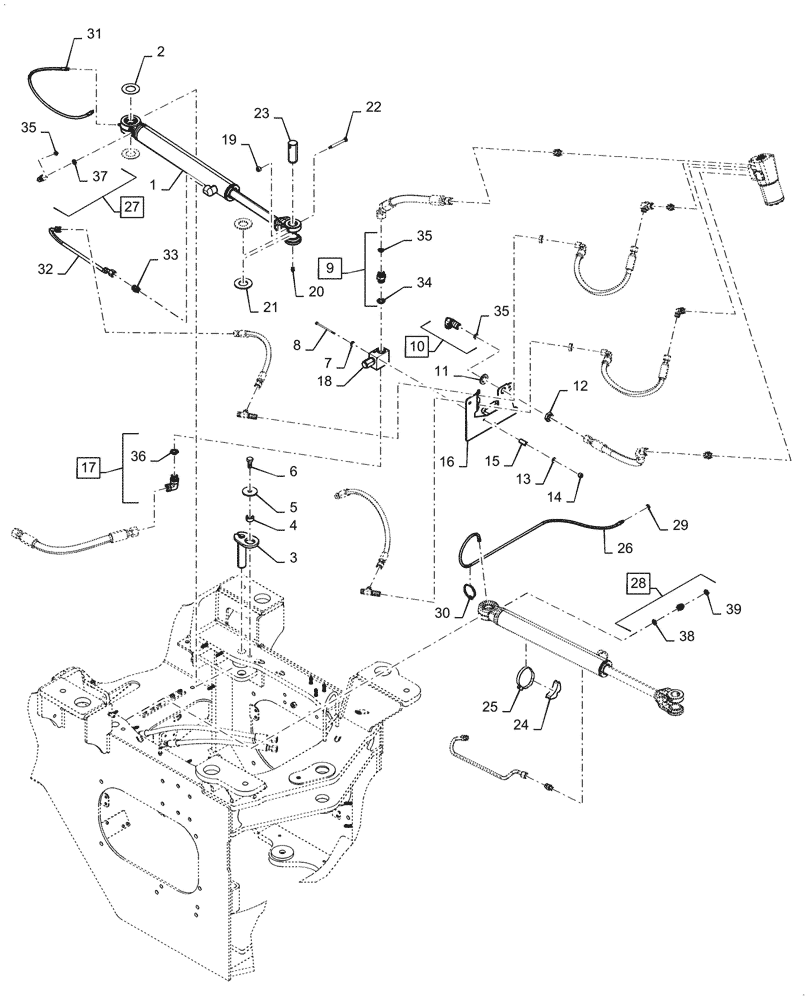

Запчасти Case 521G (41.216.010) - STEERING CYLINDER & FITTING INSTALLATION (41) - STEERING

1

84403509

CYLINDER,Double Acting, 34.9mm Rod, 462.5mm Stroke

2шт.

2

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

4шт.

3

87749494

PIVOT PIN

Steering

2шт.

4

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

5

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

6

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

7

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

8

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

2шт.

9

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 34, 35

1шт.

10

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl 35

1шт.

11

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

1шт.

12

701-919

BHD LOCK NUT,1" - 14

1шт.

13

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

14

832-10406

NUT,M6 x 1, Cl 8

2шт.

15

87563044

SPACER,8mm ID x 16mm OD x 35mm L

2шт.

16

84551691

BRACKET

Steering Return

1шт.

17

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 36

1шт.

18

87427823

VALVE PRESSURE RELIE

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

21

419819A1

WASHER

4шт.

22

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

2шт.

23

380583A2

PIN

Steering

2шт.

24

8500483

BLOCK

4шт.

25

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

4шт.

26

313682A1

FLEXIBLE HOSE

Grease

1шт.

27

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 35, 37

1шт.

28

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 38, 39

1шт.

29

F53473

LOCK NUT,1/8-27 NPSM

2шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

31

L54693

HOSE

Grease

1шт.

32

84407469

RIGID TUBE

Steering Cylinder

1шт.

33

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

2шт.

34

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

35

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

36

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

37

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

38

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

39

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
