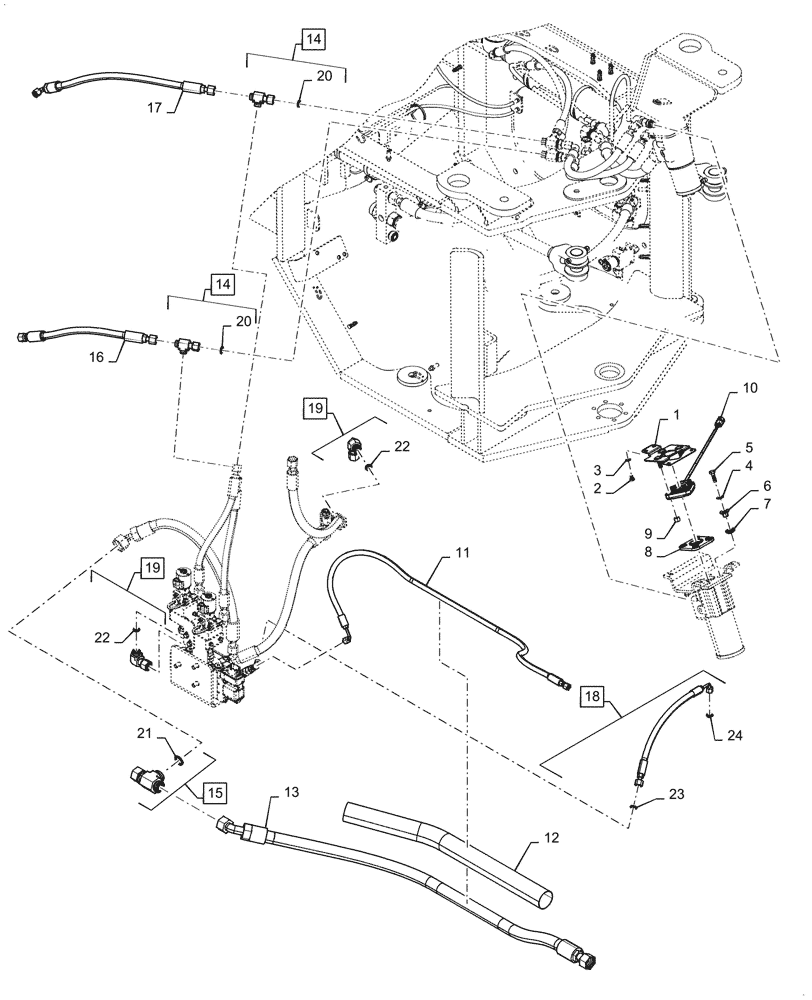

Запчасти Case 521G (41.200.060[02]) - VAR - 482913 - SECONDARY STEERING, W/ JOYSTICK (41) - STEERING

1

48037668

BRACKET

JSS Sensor Mounting

1шт.

2

300380

BOLT,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

7

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

8

84553550

ISOLATOR

Steering Pump

1шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

10

47786983

SENSOR

Steering Angle

1шт.

11

437596A1

HOSE ASSY.

Steering, Load Sensing, 1461mm L

1шт.

12

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

13

84145206

HOSE ASSY.

Valve Return, 1490mm L

1шт.

14

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 20

2шт.

15

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 21

1шт.

16

84164219

HOSE ASSY.

Steering, Right Rod, 475mm L

1шт.

17

84164220

HOSE ASSY.

Steering, Right Base, 664mm L

1шт.

18

47934472

HOSE

JSS Load Sense, 482mm L, Incl 23, 24

1шт.

19

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 22

2шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
