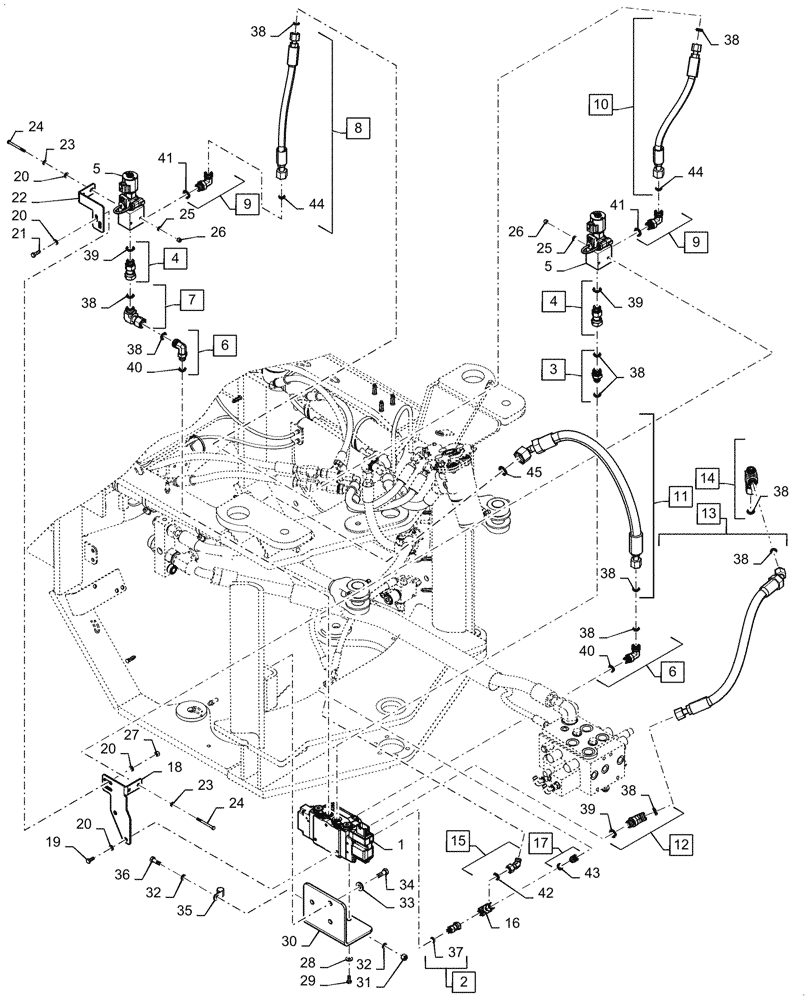

Запчасти Case 521G (41.200.060[01]) - VAR - 482913 - SECONDARY STEERING, W/ JOYSTICK (41) - STEERING

1

47908612

VALVE

Steering

1шт.

2

87643580

HYD CONNECTOR

Incl 37

1шт.

3

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 38

1шт.

4

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

Incl 39

2шт.

5

47908616

VALVE

Cutoff

2шт.

6

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 38, 40

2шт.

7

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 38

2шт.

8

47934467

HOSE

to Cylinder, 460mm L, Incl 38, 44

1шт.

9

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 41

2шт.

10

47934467

HOSE

to Cylinder, 460mm L, Incl 38, 44

1шт.

11

47934469

HOSE

to Tank, 685mm L, 38, 45

1шт.

12

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 38, 39

1шт.

13

47976002

HOSE

JSS Valve Pressure, 665mm L, Incl 38

1шт.

14

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 38

1шт.

15

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 42

1шт.

16

47908251

VALVE

Hydraulic Shuttle Tee

1шт.

17

84188429

FITTING

Incl 43

1шт.

18

47908765

BRACKET

Valve Mount

1шт.

19

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

20

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

22

47908767

BRACKET

Valve Mount Adjust

1шт.

23

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

24

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

4шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

26

832-10406

NUT,M6 x 1, Cl 8

4шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

28

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

30

47909758

BRACKET

JSS Valve Mount

1шт.

31

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

32

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

34

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

35

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

36

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

37

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

38

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

10шт.

39

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

40

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

41

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

42

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

43

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

44

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

45

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.
