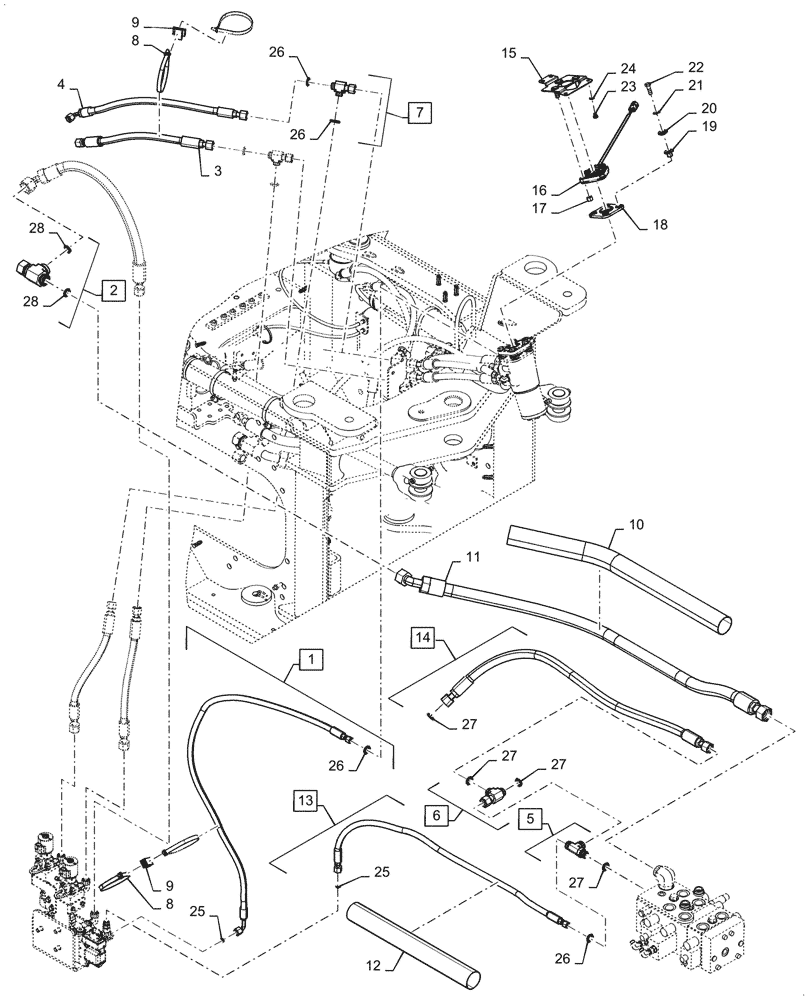

Запчасти Case 521G (41.200.050[02]) - VAR - 482930 - STANDARD, STEERING - W/ JOYSTICK (41) - STEERING

1

47934471

HOSE

Load Sense, Orbitrol, 1490mm L, Incl 25, 26

1шт.

2

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 28

1шт.

3

84164219

HOSE ASSY.

Steering, Right Rod, 475mm L

1шт.

4

84164220

HOSE ASSY.

Steering, Right Base, 664mm L

1шт.

5

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 27

1шт.

6

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 27

1шт.

7

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 26

2шт.

8

84266050

CABLE TIE,384mm L, Polyamide

4шт.

9

84266053

TUBE SPACER

2шт.

10

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

11

84145206

HOSE ASSY.

Valve Return, 1490mm L

1шт.

12

87559559

HOSE PROTECTION

1шт.

13

47934468

HOSE

JSS Load Sense, 1150mm L, Incl 25, 26

1шт.

14

47976001

HOSE

JSS Pressure, 1100mm L, Incl 27

1шт.

15

48037668

BRACKET

JSS Sensor Mounting

1шт.

16

47786983

SENSOR

Steering Angle

1шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

18

84553550

ISOLATOR

1шт.

19

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

20

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

23

300380

BOLT,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

4шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

25

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

28

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.
