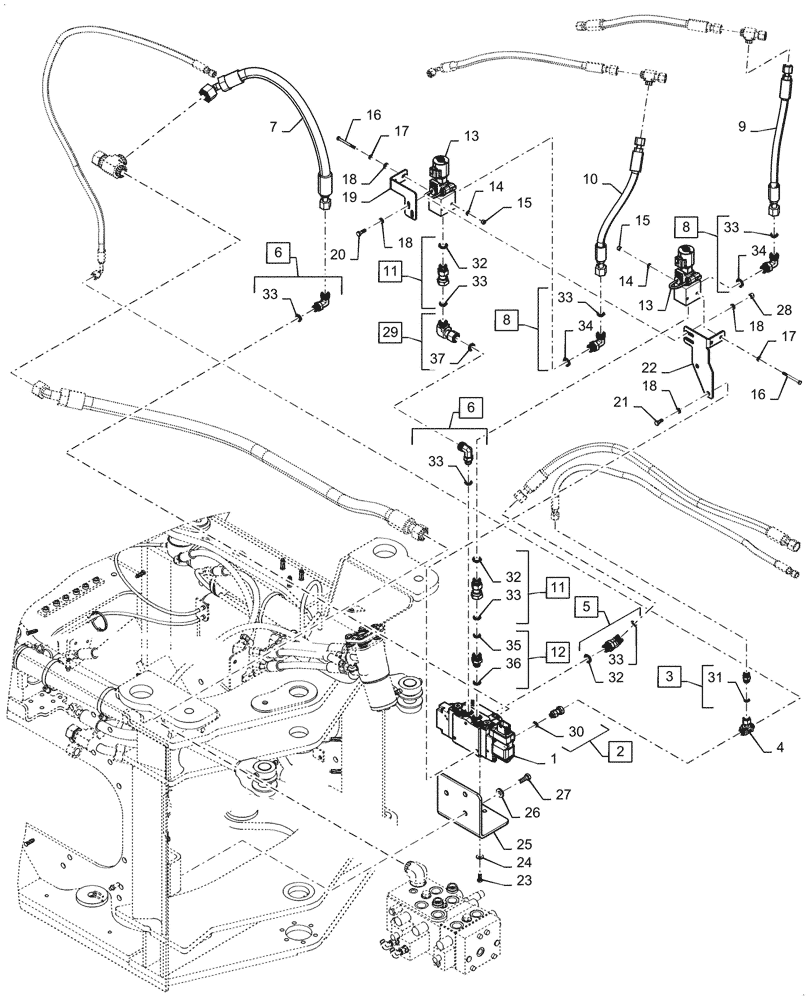

Запчасти Case 521G (41.200.050[01]) - VAR - 482930 - STANDARD, STEERING - W/ JOYSTICK (41) - STEERING

1

47908612

VALVE

Steering

1шт.

2

87643580

HYD CONNECTOR

Incl 30

1шт.

3

84431546

UNION,11/16"-16 ORFS

Incl 31

1шт.

4

47908251

VALVE

Hydraulic Shuttle Tee

1шт.

5

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 32, 33

1шт.

6

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 33

2шт.

7

47934469

HOSE

to Tank

1шт.

8

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 33, 34

2шт.

9

47934467

HOSE

to Cylinder

1шт.

10

47934467

HOSE

to Cylinder

1шт.

11

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

Incl 32, 33

2шт.

12

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 35, 36

1шт.

13

47908616

VALVE

Cutoff

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

832-10406

NUT,M6 x 1, Cl 8

4шт.

16

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

4шт.

17

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

18

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

19

47908767

BRACKET

Valve Mount Adjust

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

21

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

22

47908765

BRACKET

Valve Mount

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

24

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

25

47909758

BRACKET

JSS Valve Mount

1шт.

26

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

27

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

29

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 37

1шт.

30

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

31

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

32

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

35

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

37

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.
