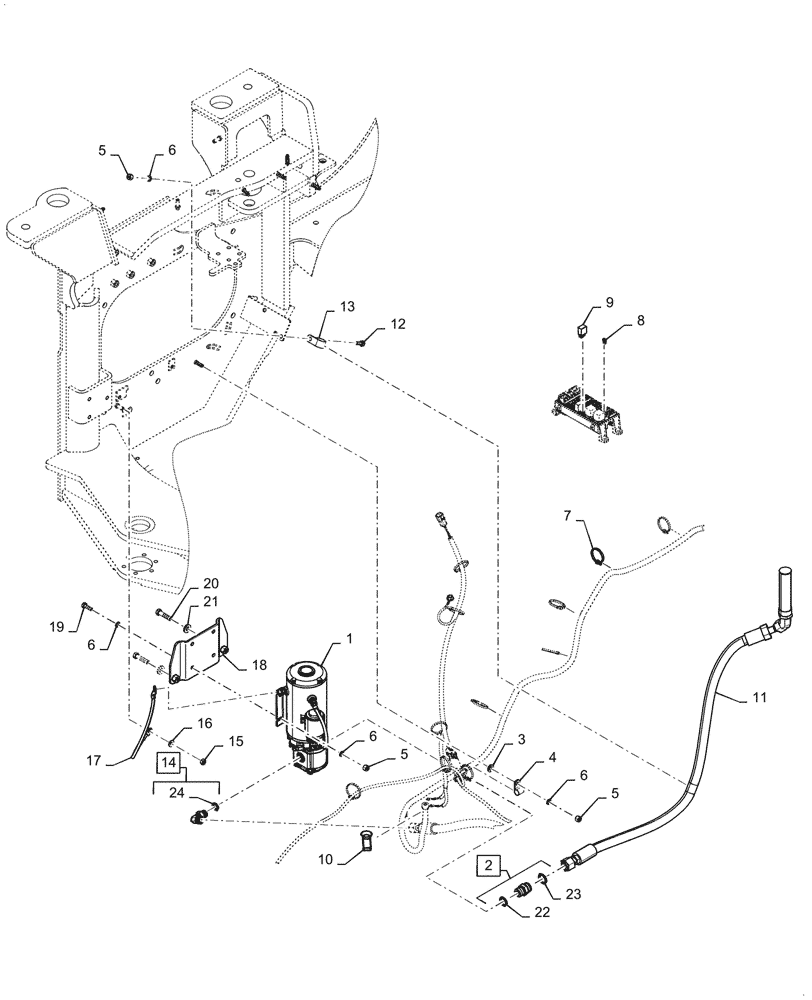

Запчасти Case 521G (41.200.030[03]) - VAR - 482913, 782442 - SECONDARY STEERING PACKAGE (41) - STEERING

1

84419597

MOTOR-PUMP

Aux

1шт.

2

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 22, 23

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

4

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

8

84152583

FUSE,7.5A, Mini, Brown

1шт.

9

84368717

RELAY

1шт.

10

L126713

BOOT

Electrical

1шт.

11

87662934

HOSE ASSY.

Aux Steering Suction, 1145mm L

1шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

13

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

14

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 24

1шт.

15

253347A1

NUT,Hex, M10 x 1.5

1шт.

16

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

17

L129707

NEG BATTERY CABLE

1шт.

18

87367580

BRACKET

Pump Mounting

1шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

20

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

21

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

24

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
