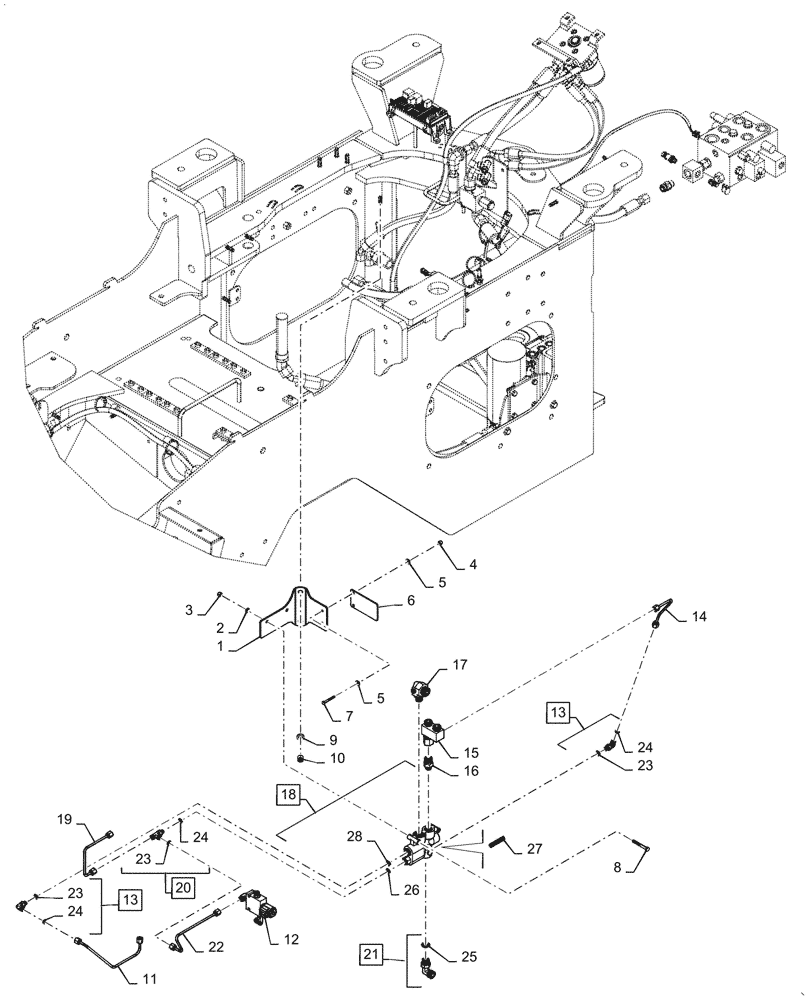

Запчасти Case 521G (41.200.030[02]) - VAR - 482913, 782442 - SECONDARY STEERING PACKAGE (41) - STEERING

1

87367465

BRACKET

Aux Steering

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

4

832-10406

NUT,M6 x 1, Cl 8

2шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

6

87403158

SHIELD

Solenoid Valve

1шт.

7

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

8

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

11

87451269

TUBE,6.35 mm OD

Load Sense, 334mm L

1шт.

12

445471A1

VALVE

Solenoid

1шт.

13

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 23, 24

2шт.

14

87706314

TUBE,.25" OD

Load Sense

1шт.

15

376636A1

FITTING

Aux Pressure

1шт.

16

392354A1

VALVE, CHECK

1шт.

17

376794A1

FITTING

Excess Flow

1шт.

18

87371432

HYDRAULIC VALVE

Priority, Incl 26 - 28

1шт.

19

87374103

HYD TUBE,4.57 mm ID x 6.35 mm OD x 112.4, 78.3 mm L

Aux Tank, 259mm L

1шт.

20

700-435

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 23, 24

1шт.

21

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 25

1шт.

22

87374100

HYD TUBE,4.57 mm ID x 6.35 mm OD x 200, 15.1 mm L

Aux Steering Tank

1шт.

23

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

24

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

25

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

8605251

SPRING

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
