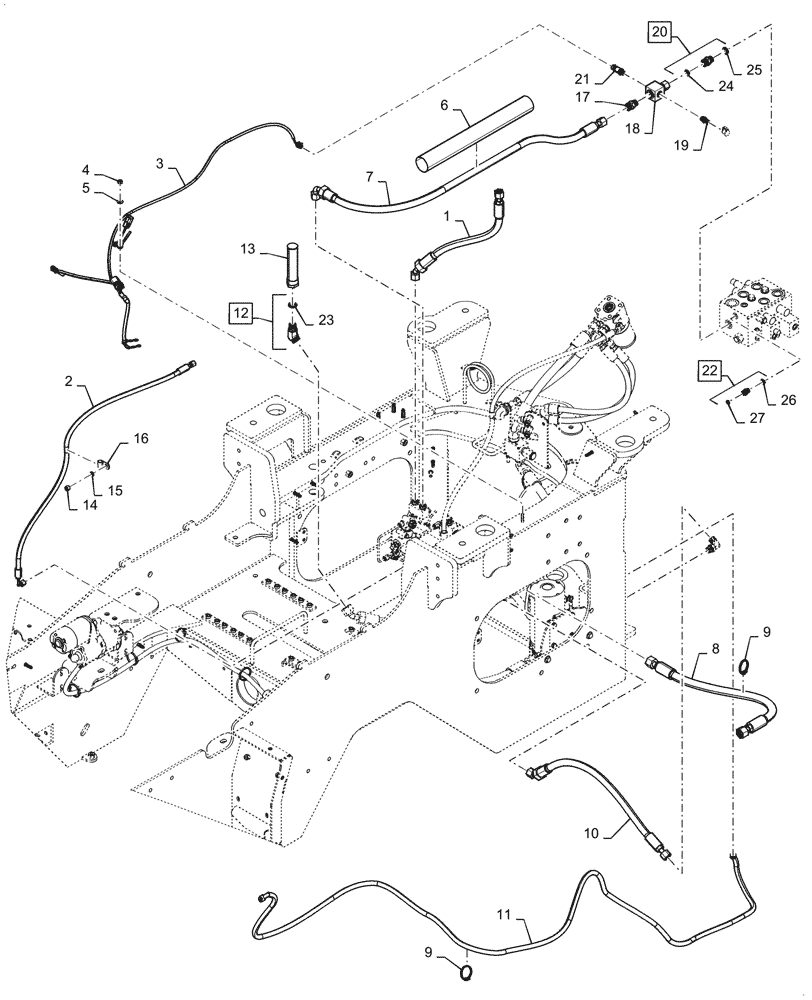

Запчасти Case 521G (41.200.030[01]) - VAR - 482913, 782442 - SECONDARY STEERING PACKAGE (41) - STEERING

1

87748441

HOSE ASSY.

Controlled Flow, 625mm L

1шт.

2

87724965

HOSE ASSY.,6.35mm ID x 1350mm L, SAE 100R2

Aux Load Sense, 1350mm L

1шт.

3

47807597

WIRE HARNESS

Secondary Steering Module

1шт.

4

253347A1

NUT,Hex, M10 x 1.5

1шт.

5

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

6

87559559

HOSE PROTECTION

1шт.

7

87706316

HOSE ASSY.

Aux Steering Pressure, 1300mm L

1шт.

8

87436049

HOSE ASSY.

Excess Flow, 940mm L

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

16шт.

10

87436048

HOSE ASSY.

Aux Steering Pressure, 755mm L

1шт.

11

47917811

CABLE

Starter to Aux Steering

1шт.

12

433530A1

ELBOW

Incl 23

1шт.

13

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

15

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

16

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

17

376970A1

VALVE, CHECK

1шт.

18

400242A1

FITTING

Aux Steering Switch

1шт.

19

178889A1

DIAGNOSTIC COUPLER

1шт.

20

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 24, 25

1шт.

21

84409605

SENSOR

Pressure

1шт.

22

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 26, 27

1шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

27

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
