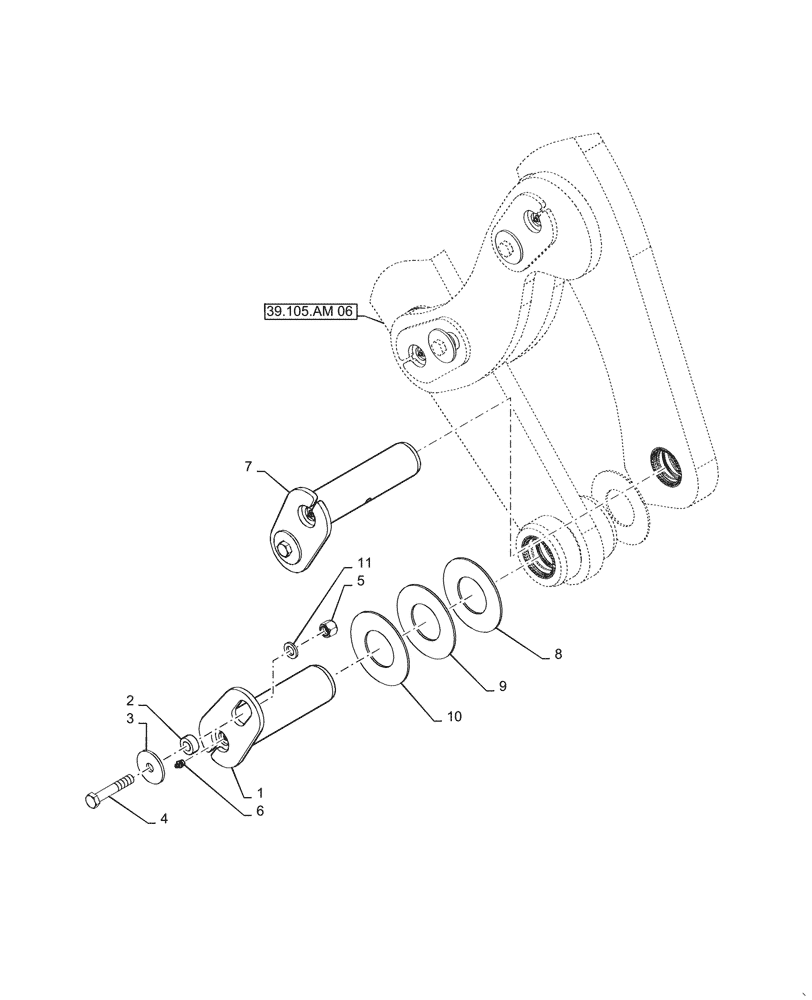

Запчасти Case 521G (39.105.040) - VAR - 782537, 482047, 424988, 424249 - LIFT ARM, PIN INSTALLATION (39) - FRAMES AND BALLASTING

1

87304943

PIVOT PIN,69.85mm OD x 253.5mm L

Lift CNH CE Gray

2шт.

2

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

4шт.

3

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

4шт.

4

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

5

832-10416

NUT,M16 x 2, Cl 8

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting Lube

4шт.

7

84317391

PIN,63.5mm OD x 244mm L

Lift Pivot CNH CE Gray

2шт.

8

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

71.3 I.D 3.5 THK

1шт.

9

375516A1

WASHER,71.3mm ID x 142mm OD x 1.6mm Thk

71.3 I.D 1.6 THK

1шт.

10

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

71.3 I.D 2.5 THK

1шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.
