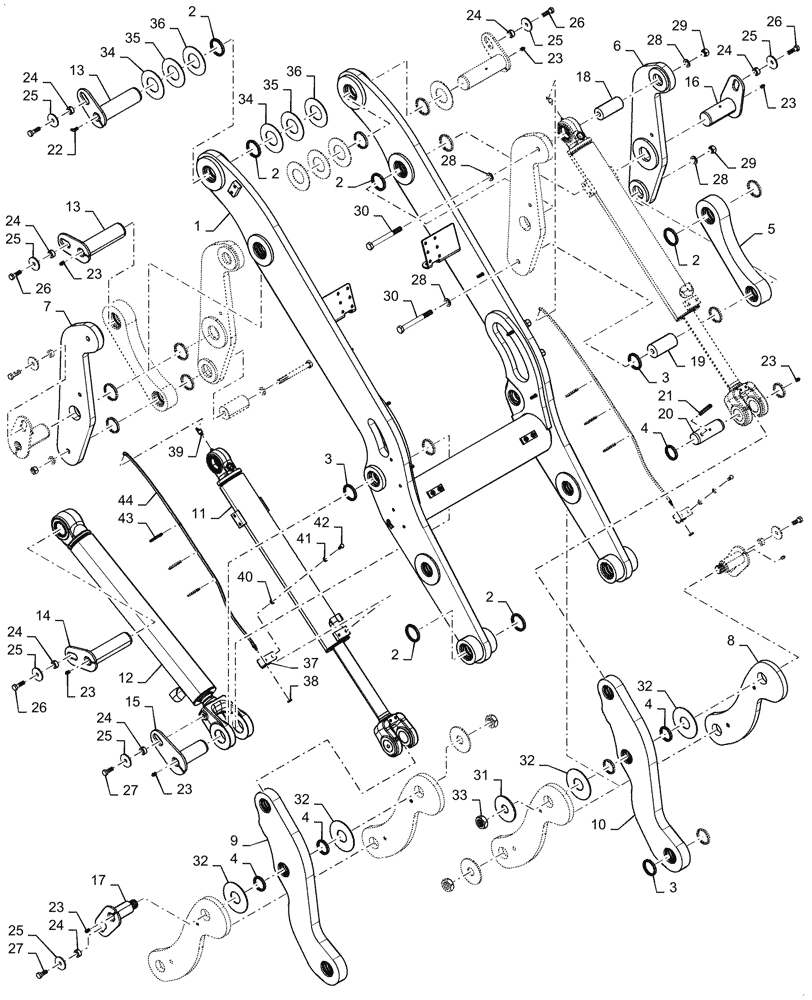

Запчасти Case 521G (39.105.030) - LIFT ARM INSTALLATION, XT (39) - FRAMES AND BALLASTING

1

47898164

LIFT ARM

XT

1шт.

2

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

16шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

12шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

12шт.

5

87447627

LINKAGE

Anchor

2шт.

6

87343715

BELLCRANK

LH

2шт.

7

87343720

BELLCRANK

RH

2шт.

8

87447635

LINKAGE

Guide

4шт.

9

87452240

LINKAGE

Dump

1шт.

10

87310634

LINKAGE

Dump

1шт.

11

87446958

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 758.3mm Stroke

Tilt

2шт.

12

87366685

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 783mm Stroke

Lift

2шт.

13

87446997

HEADED PIN

Lift Arm

4шт.

14

84315936

PIN

63.5mm OD X 244mm L, Lift Arm Pivot, Head

2шт.

15

87397333

PIN,63.5mm OD x 177.5mm L

Lift Arm Pivot, Rod

2шт.

16

368744A2

PIN ASSY.

69.8mm OD X 161mm L, Bell Crank Pivot

2шт.

17

369238A2

PIN ASSY.

57.1mm OD X 144.1mm L, Guide Link

4шт.

18

368775A1

PIN

57.15mm OD X 130mm L, Bell Crank, Cylinder Side

2шт.

19

368776A1

PIN,63.5mm OD x 130.65mm L

Bell Crank, Anchor Side

2шт.

20

368836A2

PIN,57.15mm OD x 165mm L

Tilt Cylinder

2шт.

21

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

22

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

17шт.

24

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14шт.

25

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

26

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

27

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

28

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

29

829-1420

NUT,M20, Cl 10

4шт.

30

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

31

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

4шт.

32

369712A1

WASHER

58.6mm ID

8шт.

33

131-53

NUT,1 1/2"-12

4шт.

34

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

1шт.

35

375516A1

WASHER,71.3mm ID x 142mm OD x 1.6mm Thk

1шт.

36

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

1шт.

37

87448980

BRACKET

Grease Hose Mount

2шт.

38

F53473

LOCK NUT,1/8-27 NPSM

2шт.

39

328082A1

ELBOW

90°

2шт.

40

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

41

892-11010

LOCK WASHER,M10

4шт.

42

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

43

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

44

87444057

FLEXIBLE HOSE

Grease

2шт.
