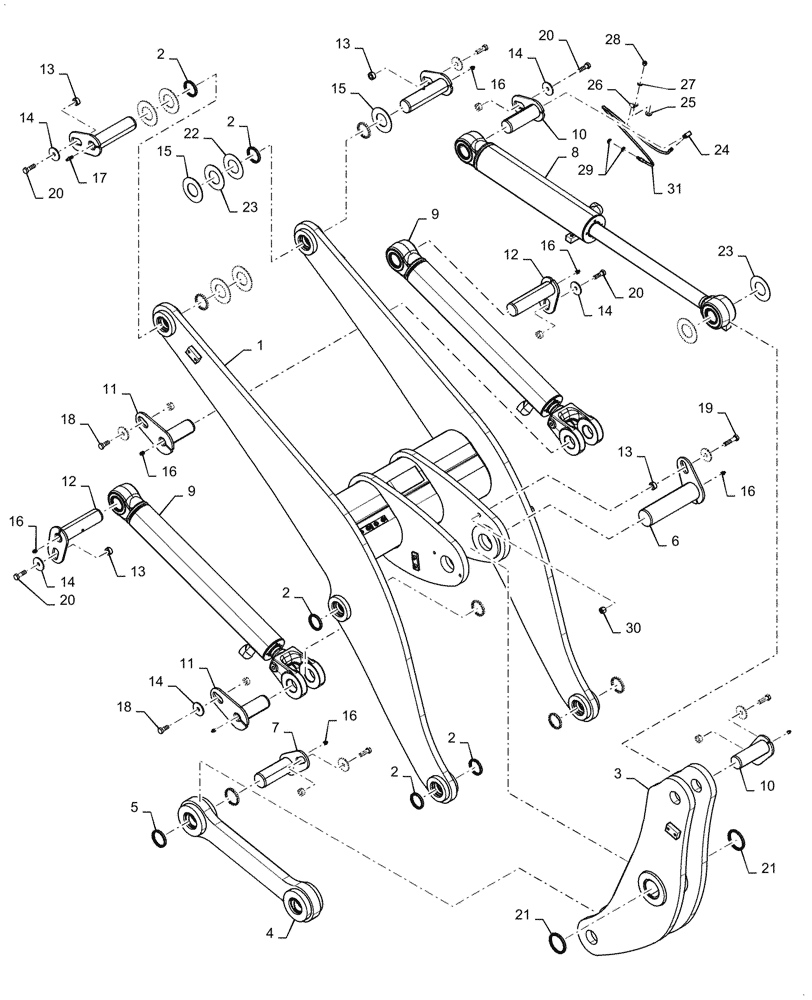

Запчасти Case 521G (39.105.010) - LIFT ARM INSTALLATION, XR (39) - FRAMES AND BALLASTING

1

47765033

LIFT ARM

XR

1шт.

2

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

12шт.

3

47724160

BELLCRANK

1шт.

4

87395745

ARM

Dump

1шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

4шт.

6

87397320

PIN,82.55mm OD x 316.5mm L

Bellcrank Pivot

1шт.

7

87397326

PIN

Dump Link Pivot

1шт.

8

87695546

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 529.2mm Stroke

Tilt

1шт.

9

87366685

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 783mm Stroke

Lift

2шт.

10

87397324

PIN ASSY.

Lift Arm Pivot

2шт.

11

87397333

PIN,63.5mm OD x 177.5mm L

Lift Arm Pivot, Rod

2шт.

12

84315936

PIN

Lift Arm Pivot, Head

4шт.

13

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

10шт.

14

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

15

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

17

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

18

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

19

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

20

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

7шт.

21

365523A1

WIPER SEAL

82.5mm

2шт.

22

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

2шт.

23

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

5шт.

24

328082A1

ELBOW

90°

1шт.

25

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

26

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

29

F53473

LOCK NUT,1/8-27 NPSM

1шт.

30

832-10416

NUT,M16 x 2, Cl 8

1шт.

31

L54694

HOSE,4.8mm ID x 1041mm L

Grease Line

1шт.
