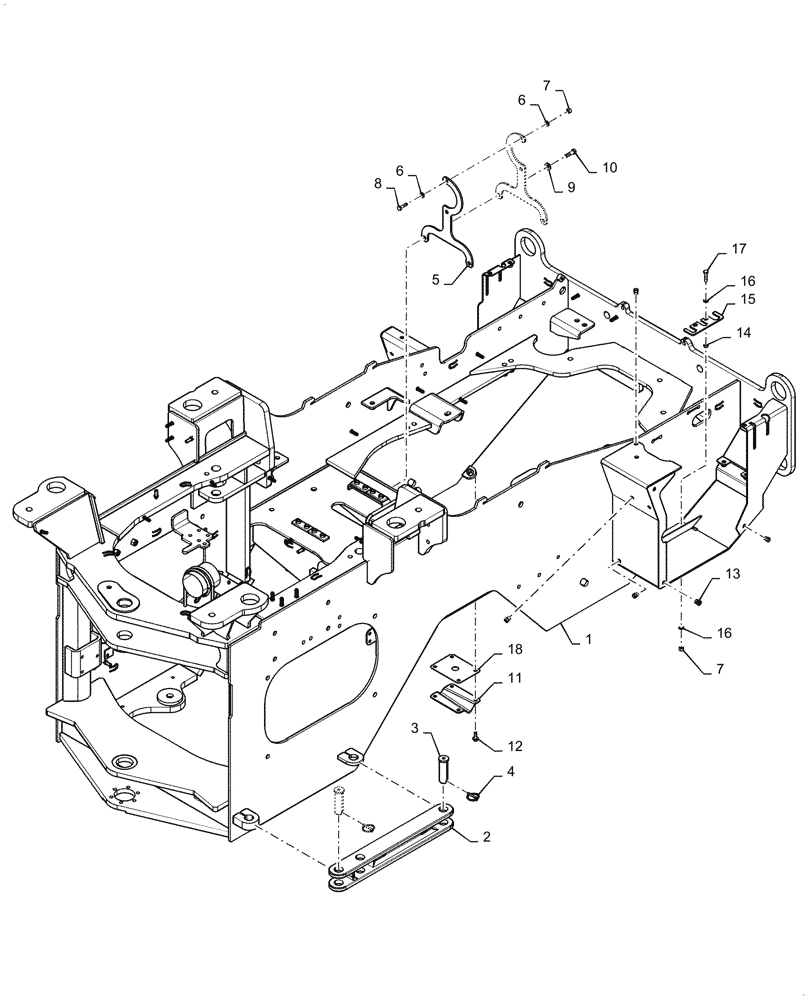

Запчасти Case 521G (39.100.070) - REAR FRAME INSTALLATION (39) - FRAMES AND BALLASTING

1

47898989

FRAME

Rear, Gray

1шт.

2

412067A1

LOCKING BAR

Articulation

1шт.

3

126268A1

PIN,31.8mm OD x 108mm L

Articulation Lock

2шт.

4

A30338

PIN

2шт.

5

84359820

GUARD

Drive Shaft

2шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

11

48044036

PLATE

Def Tank Drain Cover

1шт.

12

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

13

390618A1

INSERT,Knurled Open, M10 x 13.46mm OD

9шт.

14

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

2шт.

15

47594838

PLATE

Lock Nut Drain

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

17

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

18

48044034

PLATE

Def Tank Drain Guard

1шт.
