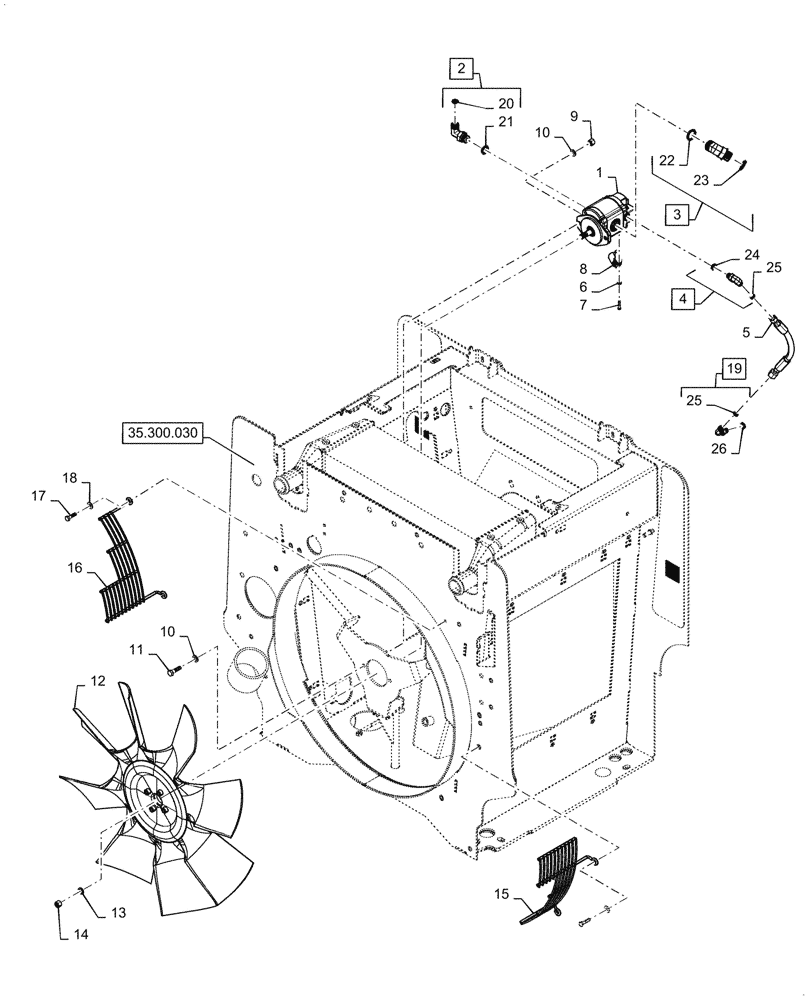

Запчасти Case 521G (35.752.010) - HYDRAULIC FAN MOTOR INSTALLATION (35) - HYDRAULIC SYSTEMS

1

47883008

MOTOR-PUMP

Hydraulic Fan Drive, 14cc

1шт.

2

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 20, 21

1шт.

3

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 22, 23

1шт.

4

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 24, 25

1шт.

5

87427292

HOSE ASSY.,6.35mm ID x 260mm L, SAE 100R17

Fan Drive

1шт.

6

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

7

814-5025

BOLT,Hex, M5 x 0.8 x 25mm, Cl 8.8

1шт.

8

47557243

SENSOR

Speed

1шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

12

87700024

FAN,8 Blades, 711.2mm OD

1шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

14

232-2448

NUT,1/2"-20, GC

1шт.

15

47570973

GUARD

Bottom

1шт.

16

47570147

GUARD

1шт.

17

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

19

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 25, 26

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

24

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

25

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
