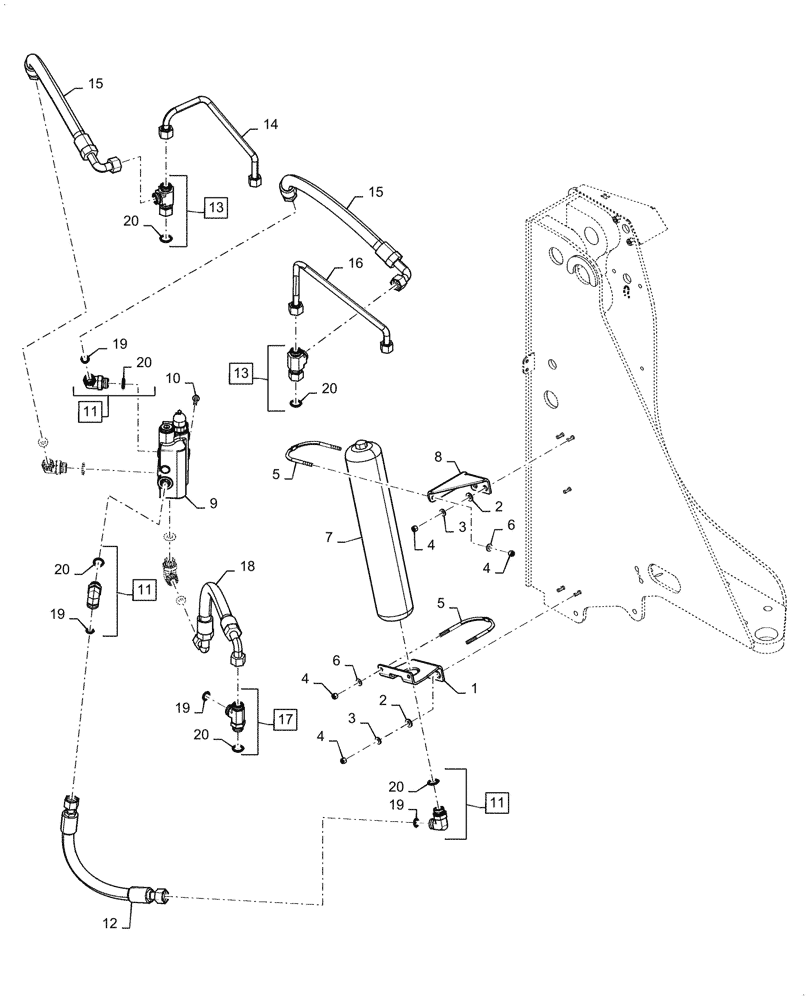

Запчасти Case 521G (35.701.100) - VAR - 782503 - RIDE CONTROL (35) - HYDRAULIC SYSTEMS

1

87393646

BRACKET

Accumulator

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

5

87492028

U-BOLT

2шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

7

87393434

ACCUMULATOR,3.8L

1шт.

8

87403347

BRACKET

Accumulator

1шт.

9

84494281

HYDRAULIC VALVE

Ride Control

1шт.

10

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

11

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 19, 20

5шт.

12

87452278

HOSE ASSY.

Ride Control Accumulator, 588mm L

1шт.

13

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 20

2шт.

14

87452281

TUBE,16mm ID x19.05mm OD x 248mm L

1шт.

15

87452280

HOSE ASSY.

Ride Control Head

2шт.

16

87452283

TUBE,16mm ID x 19mm OD x 298mm L

1шт.

17

700-407

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 19, 20

1шт.

18

87452279

HOSE ASSY.

Ride Control Tank, 722mm L

1шт.

19

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
