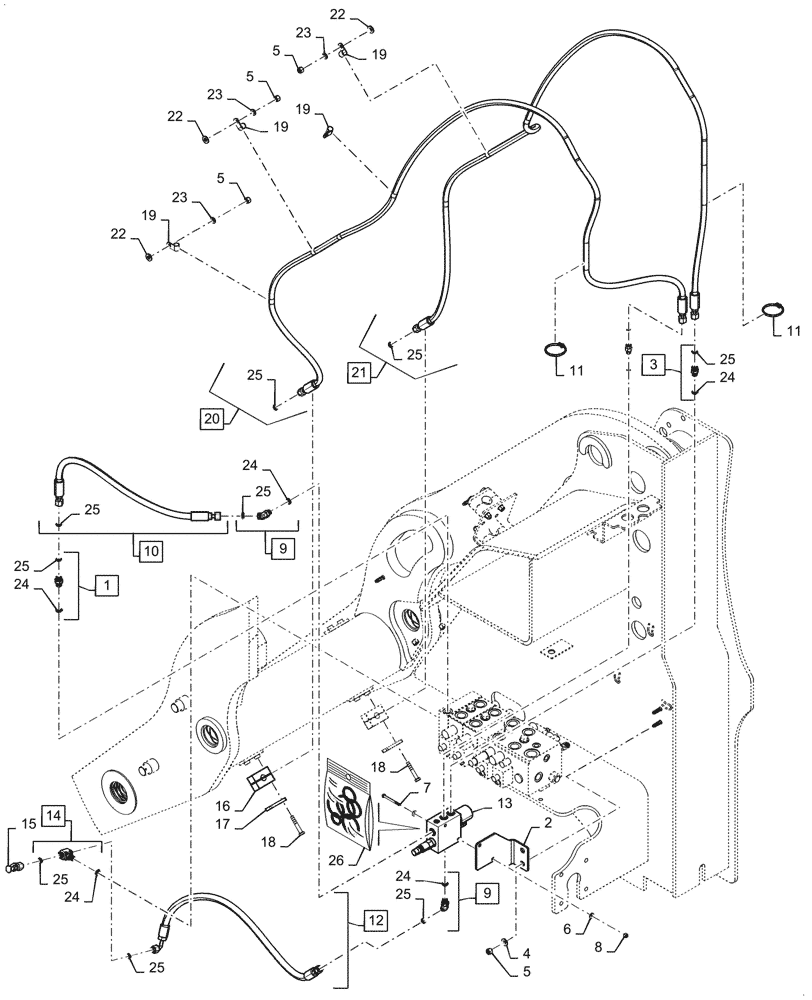

Запчасти Case 521G (35.701.030) - VAR - 482047, 424988, 734006, 734007 - COUPLER LINE INSTALLATION, XT (35) - HYDRAULIC SYSTEMS

1

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 24, 25

1шт.

2

47873810

BRACKET

Coupler Solenoid

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 24, 25

2шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 24, 25

2шт.

10

47878041

HOSE

Coupler Tank, 860mm L, Incl 25

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

8шт.

12

47995034

HOSE

Coupler Pressure, 900mm L, Incl 25

1шт.

13

47955819

SOLENOID VALVE

Coupler, for Service Seals See Ref 26

1шт.

14

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 24, 25

1шт.

15

190119A1

COUPLING

Diagnostic

1шт.

16

379374A1

BLOCK

Tube Mounting

2шт.

17

367658A1

PLATE

2шт.

18

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

8шт.

20

87448666

HOSE ASSY.

Coupler, LH, 353mm L, Incl 25

1шт.

21

87448665

HOSE ASSY.

Coupler, RH, 323mm L, Incl 25

1шт.

22

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

7шт.

26

8605259

SEAL KIT

Service Kit for Ref 12

1шт.
