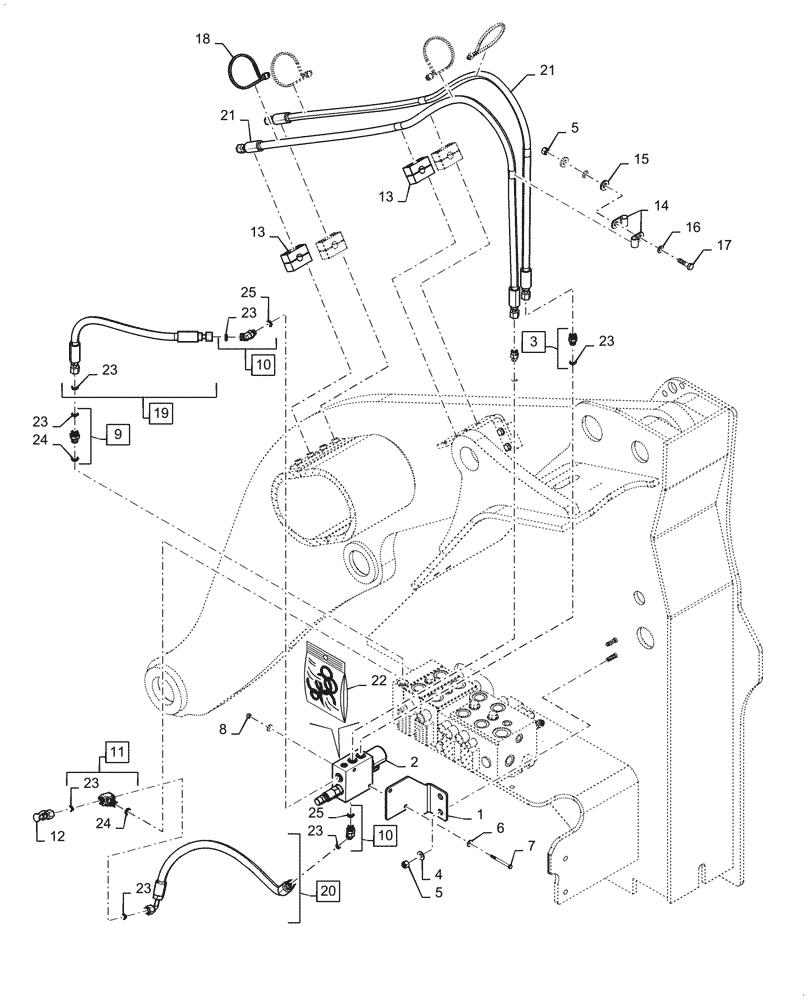

Запчасти Case 521G (35.701.010) - VAR - 482047, 424988, 734006, 734007 - COUPLER LINE INSTALLATION, Z-BAR (35) - HYDRAULIC SYSTEMS

1

47873810

BRACKET

Coupler Solenoid

1шт.

2

47955819

SOLENOID VALVE

For Service Seal Kit See Ref. 22

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 23

2шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 23, 24

1шт.

10

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 23, 25

2шт.

11

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 23, 24

1шт.

12

190119A1

COUPLING

Diagnostic

1шт.

13

379374A1

BLOCK

Tube Mounting

4шт.

14

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

17

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

19

47877728

HOSE

Coupler Tank, 660mm L, Incl 23

1шт.

20

47995033

HOSE

Coupler Pressure, 715mm L, Incl 23

1шт.

21

87403305

HOSE

Coupler, 2088mm L

2шт.

22

8605259

SEAL KIT

Service Kit for Ref. 2

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

24

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

25

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
