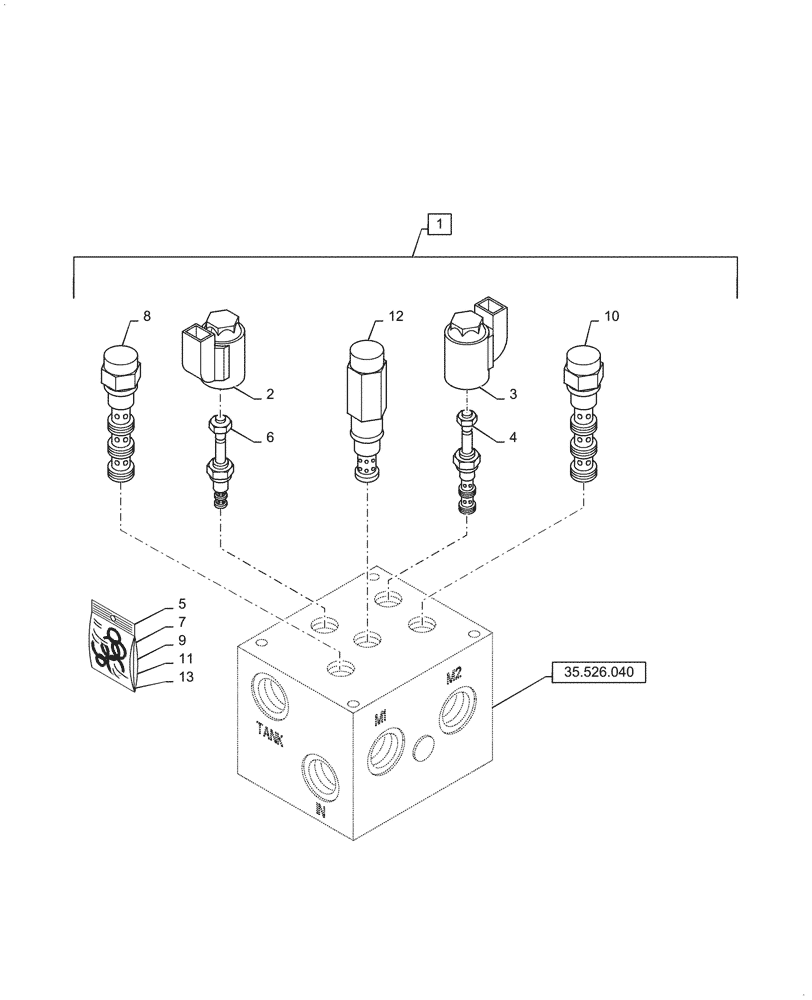

Запчасти Case 521G (35.526.040) - VAR - 482585 - FAN RELIEF VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

8500565

HYDRAULIC VALVE

Fan Speed and Reverser, Incl 2 - 13

1шт.

2

87617169

COIL

Fan Valve

1шт.

3

87617170

COIL

Fan Valve

1шт.

4

8605066

VALVE PRESSURE RELIE

Solenoid

1шт.

5

87617168

SEAL KIT

For Ref 5

1шт.

6

8605062

SOLENOID VALVE

EF Electric Proportional

1шт.

7

1542830C2

SEAL KIT

For Ref 6

1шт.

8

8605059

PILOT VALVE

Directional

1шт.

9

388744A1

SEAL KIT

For Ref 8

1шт.

10

8605056

PILOT VALVE

Directiional

1шт.

11

388744A1

SEAL KIT

For Ref 10

1шт.

12

8605053

VALVE PRESSURE RELIE

Bi-Directional

1шт.

13

1542833C1

SEAL KIT

For Ref 12

1шт.
