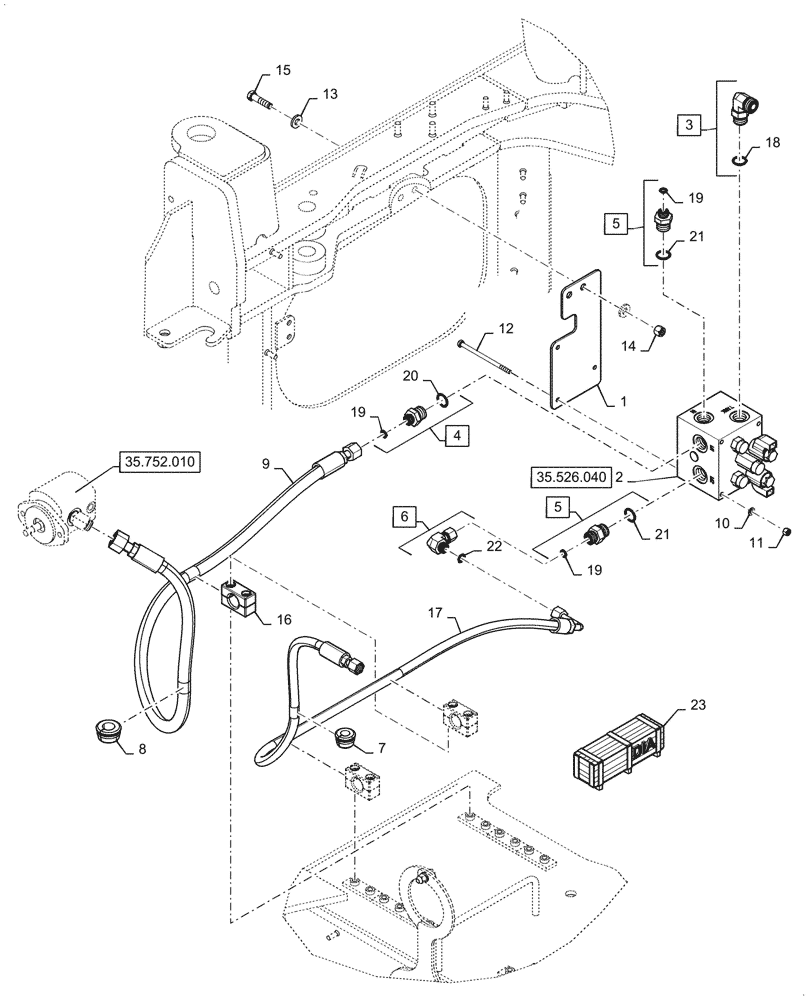

Запчасти Case 521G (35.526.030) - VAR - 482585 - VARIABLE SPEED REVERSIBLE FAN VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87724971

BRACKET

Valve Mounting

1шт.

2

8500565

HYDRAULIC VALVE

Fan Speed / Reverser

1шт.

3

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 18

1шт.

4

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 19, 20

1шт.

5

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl 19, 21

2шт.

6

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 22

1шт.

7

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

8

435214A1

GROMMET

1 x 1.75"

1шт.

9

376179A2

HOSE ASSY.

Fan Forward, 1935mm L,

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

12

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

3шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

15

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

16

372453A1

BLOCK

Tube Mounting

3шт.

17

87704887

HOSE ASSY.

Fan Reverse, 1689mm L

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

20

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

47686519

KIT

DIA KIT, Variable Speed Reversible Fan, Incl 2 - 6, 10 - 15, Inst Sheet 47925837

1шт.
