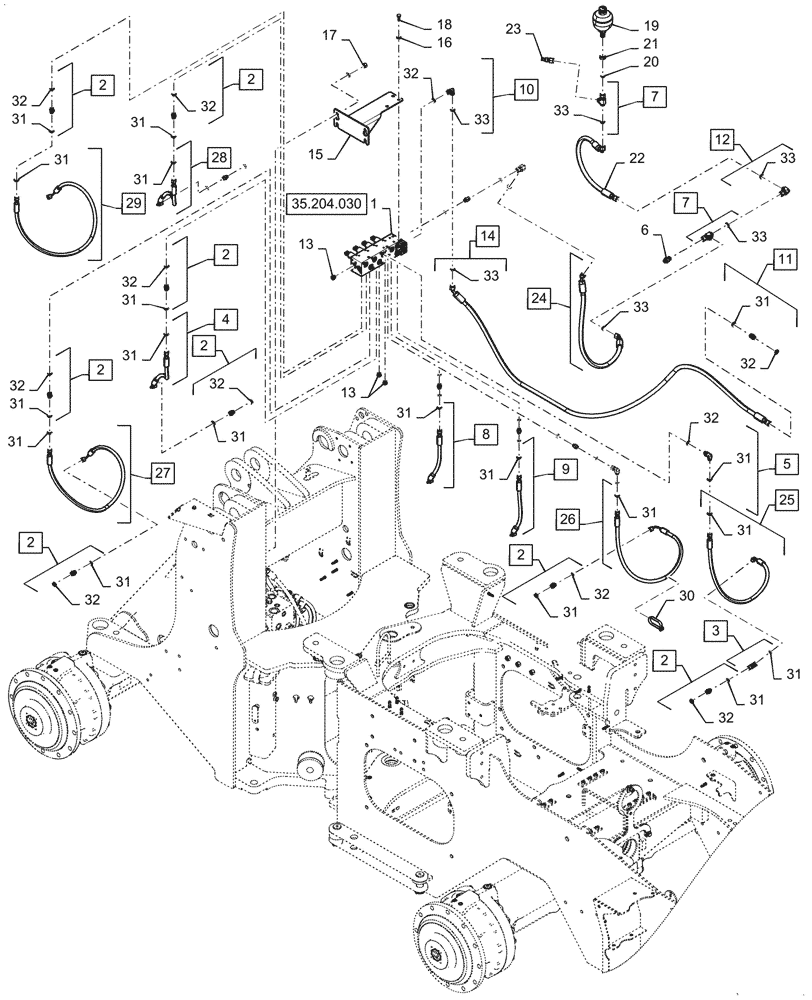

Запчасти Case 521G (35.480.030) - VAR - 734055 - CONTROL VALVE LINE - EH CONTROL, 4 SPOOL (35) - HYDRAULIC SYSTEMS

1

47718796

VALVE

EH, 4 Spool

1шт.

2

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 31, 32

15шт.

3

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 31

2шт.

4

47659236

HOSE

Pilot, Left, 515mm L, Incl 31

1шт.

5

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 31, 32

1шт.

6

391859A1

VALVE, CHECK

Control

1шт.

7

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 33

2шт.

8

47659237

HOSE

Pilot Lift, Left, 420mm L, Incl 31

1шт.

9

47646862

HOSE

Pilot Tilt, Left, 403mm L, Incl 31

1шт.

10

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 32, 33

1шт.

11

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 31, 32

2шт.

12

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 33

2шт.

13

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

11шт.

14

47659231

HOSE

Pilot Tank, 2276mm L, Incl 33

1шт.

15

47657976

BRACKET

EH Valve Mount

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

19

48000080

ACCUMULATOR

Pilot Supply, 0.32 L

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

701-909

NUT,11/16" - 16

1шт.

22

87308338

HOSE ASSY.

Pilot Accumulator, 621mm L

1шт.

23

190119A1

COUPLING

1шт.

24

47660285

HOSE

Pilot Pressure, 808mm L, Incl 33

1шт.

25

47867916

HOSE

Pilot Tilt, Right, 885mm L, Incl 31

1шт.

26

47659233

HOSE

Pilot Lift, Right, 1036mm L, Incl 31

1шт.

27

47867917

HOSE

Pilot 3 Spool, Right, 1125mm L, Incl 31

1шт.

28

47749332

HOSE

Pilot 4 Spool, Left, 590mm L, Incl 31

1шт.

29

47867918

HOSE

Pilot 4 Spool, Right, 1225mm L, Incl 31

1шт.

30

84266050

CABLE TIE,384mm L, Polyamide

1шт.

31

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

32

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
