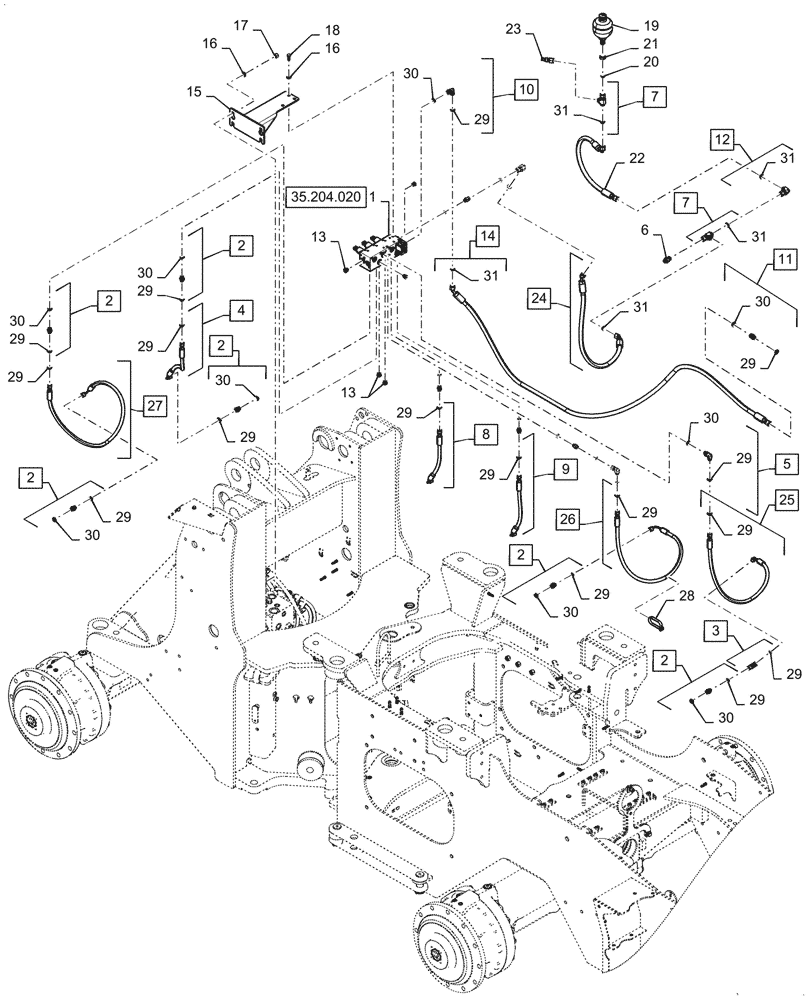

Запчасти Case 521G (35.480.020) - VAR - 734053, 734054 - CONTROL VALVE LINE - 3 SPOOL, EH (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
47646722
VALVE
EH, 3 Spool
1шт.
2
700-153
HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB
Incl 29, 30
11шт.
3
701-329
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS
Incl 29
2шт.
4
47659236
HOSE
Pilot, Left, 515mm L, Incl 29
1шт.
5
700-378
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB
Incl 29, 30
1шт.
6
391859A1
VALVE, CHECK
Control
1шт.
7
701-422
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Incl 31
2шт.
8
47659237
HOSE
Pilot Lift, Left, 420mm L, Incl 29
1шт.
9
47646862
HOSE
Pilot Tilt, Left, 403mm L, Incl 29
1шт.
10
700-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl 30, 31
1шт.
11
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl 29, 30
2шт.
12
701-319
ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Incl 31
2шт.
14
47659231
HOSE
Pilot Tank, 2276mm L, Incl 31
1шт.
15
47657976
BRACKET
EH Valve Mount
1шт.
16
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
7шт.
17
832-10410
NUT,M10 x 1.5, Cl 8
4шт.
19
48000080
ACCUMULATOR
Pilot Supply, 0.32 L
1шт.
20
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
21
701-909
NUT,11/16" - 16
1шт.
22
87308338
HOSE ASSY.
Pilot Accumulator, 621mm L
1шт.
23
190119A1
COUPLING
Diagnostic
1шт.
24
47660285
HOSE
Pilot Pressure, 808mm L, Incl 31
1шт.
25
47867916
HOSE
Pilot Tilt, Right, 885mm L, Incl 29
1шт.
26
47659233
HOSE
Pilot Lift, Right, 1036mm L, Incl 29
1шт.
27
47867917
HOSE
Pilot 3 Spool, Right, 1125mm L, Incl 29
1шт.
28
84266050
CABLE TIE,384mm L, Polyamide
1шт.
29
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
10шт.
30
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
4шт.
31
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
3шт.
Выбрано товаров: 31
