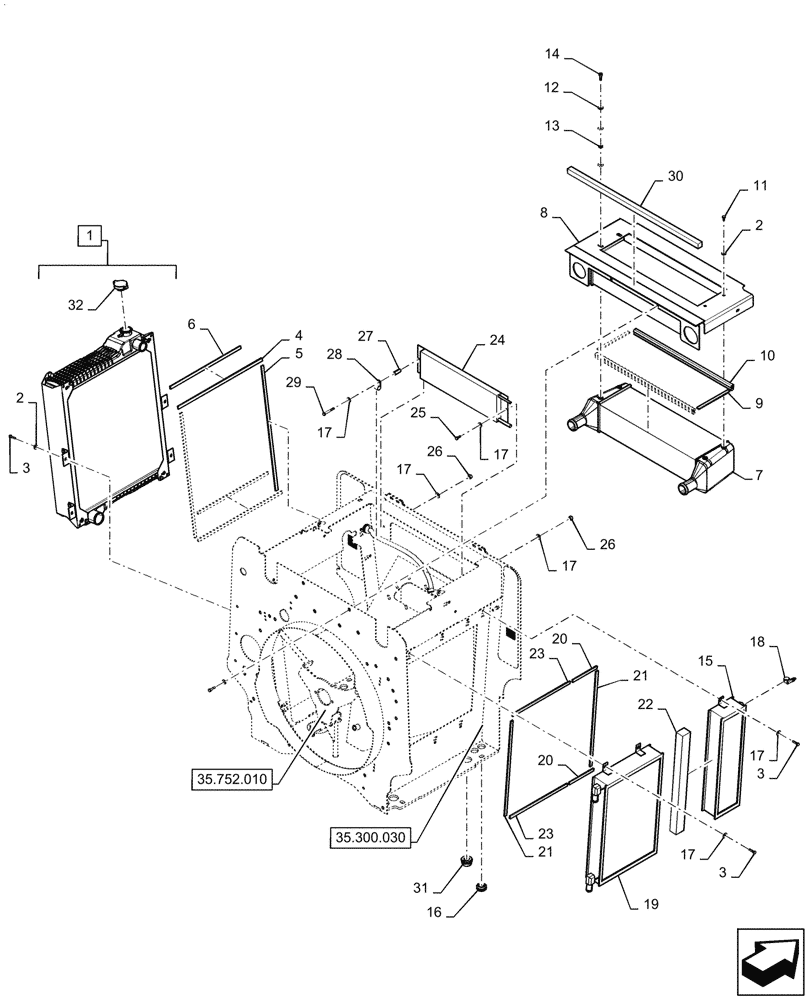

Запчасти Case 521G (35.400.020[03]) - VAR - 784554, 482585 - COOLER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

347611A3

RADIATOR

Engine, Incl 32

1шт.

2

892-11008

LOCK WASHER,8mm ID

12шт.

3

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

16шт.

4

381962A1

SEAL

Radiator Header, 537mm

2шт.

5

381938A1

SEAL

Radiator Side, 652mm

2шт.

6

381963A1

SEAL

Radiator Tank, 450mm

2шт.

7

399860A1

AFTERCOOLER

Charge Air

1шт.

8

47789860

PLATE

Charge Air Cooler Mount

1шт.

9

198573C2

SEAL

Charge Air Cooler, Foam, 197mm

2шт.

10

8500144

SEAL

Charge Air Cooler, Bulb,

2шт.

11

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

13

386040R1

SPRING

Poppet Return

2шт.

14

84591180

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

15

362963A1

COOLER, OIL

Hydraulic

1шт.

16

47598374

GROMMET

1" I.D. - 1.75" O.D.

2шт.

17

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

10шт.

18

328186A1

HOSE CLAMP

Constant Torque

2шт.

19

401430A1

COOLER, OIL

Transmission

1шт.

20

382260A1

SEAL

Hydraulic Cooler, 155mm

2шт.

21

382258A1

OIL SEAL

Oil Coolers, Side , 548mm

2шт.

22

382262A2

OIL SEAL

Oil Coolers, Foam

1шт.

23

382259A1

SEAL

Transmission Cooler, 366mm

2шт.

24

347615A3

FUEL COOLER

1шт.

25

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

27

L126936

SPACER

8mm ID x 34mm L

1шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

29

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

30

47596192

SEAL

Hood, Foam, 838mm

1шт.

31

435214A1

GROMMET

25mm I.D. - 44mm O.D.

1шт.

32

A170241

RADIATOR CAP

15 PSI

1шт.
