Запчасти Case 521G (35.359.030[03]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, XT / TC (35) - HYDRAULIC SYSTEMS

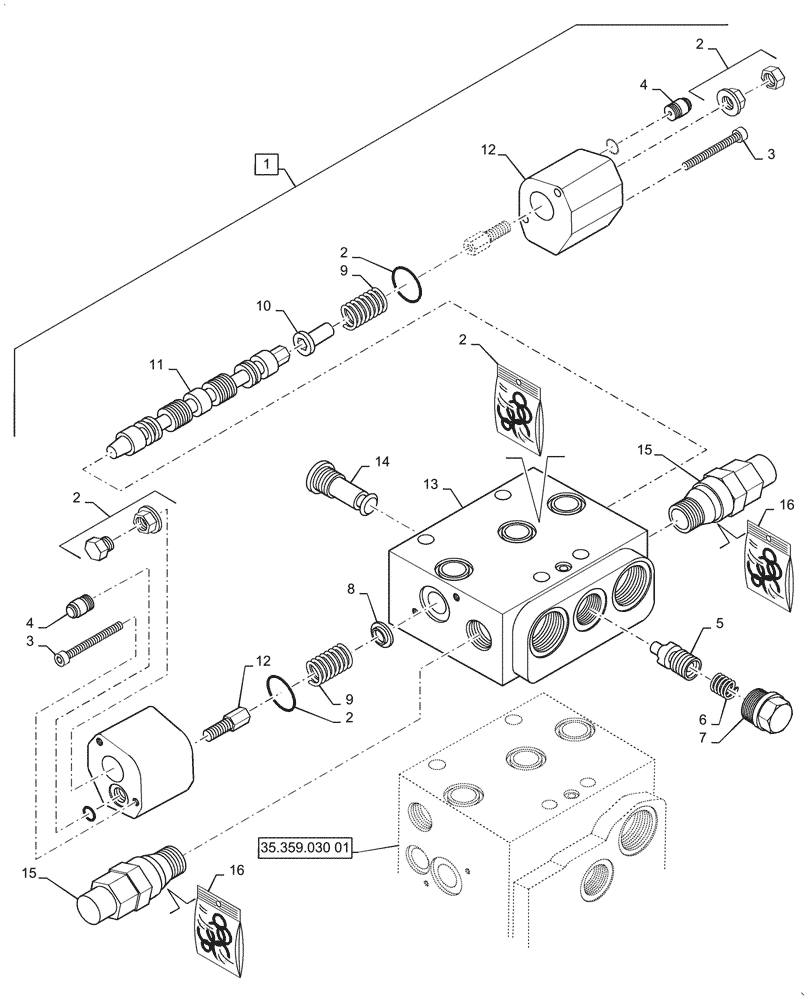

Схема запчастей Case 521G - (35.359.030[03]) - VAR - 734053, 734054 - CONTROL VALVE ASSY - 3 SPOOL, XT / TC (35) - HYDRAULIC SYSTEMS
35.359.030 01
10
3
8
4
9
3
11
13
12
15
16
2
7
16
9
5
15
2
2
2
12
1
2
6
4
14

Артикул

Название

Примечание

Количество

1

87680516

HYDRAULIC VALVE

Three Spool, Incl 2 - 16

1шт.

2

47729051

SEAL KIT

For Housing

1шт.

3

87657975

HEX SOC SCREW,M5 x 55mm, Cl 8.8

4шт.

4

8604578

CHECK VALVE

Throttle

2шт.

5

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

7

8604581

SCREW,Lock, M6

1шт.

8

NSS

NOT SOLD SEPARAT

Spring Retainer, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

12

8604576

COVER

M6 Valve, Option (B3)

2шт.

13

NSS

NOT SOLD SEPARAT

Block, M6, Spool, Incl in 1

1шт.

14

8604567

VALVE, CHECK

Loder Control

1шт.

15

47729054

VALVE

Anticavitation

2шт.

16

47728949

SEAL KIT

Anticavitation Valve

2шт.

Выбрано товаров: 16
