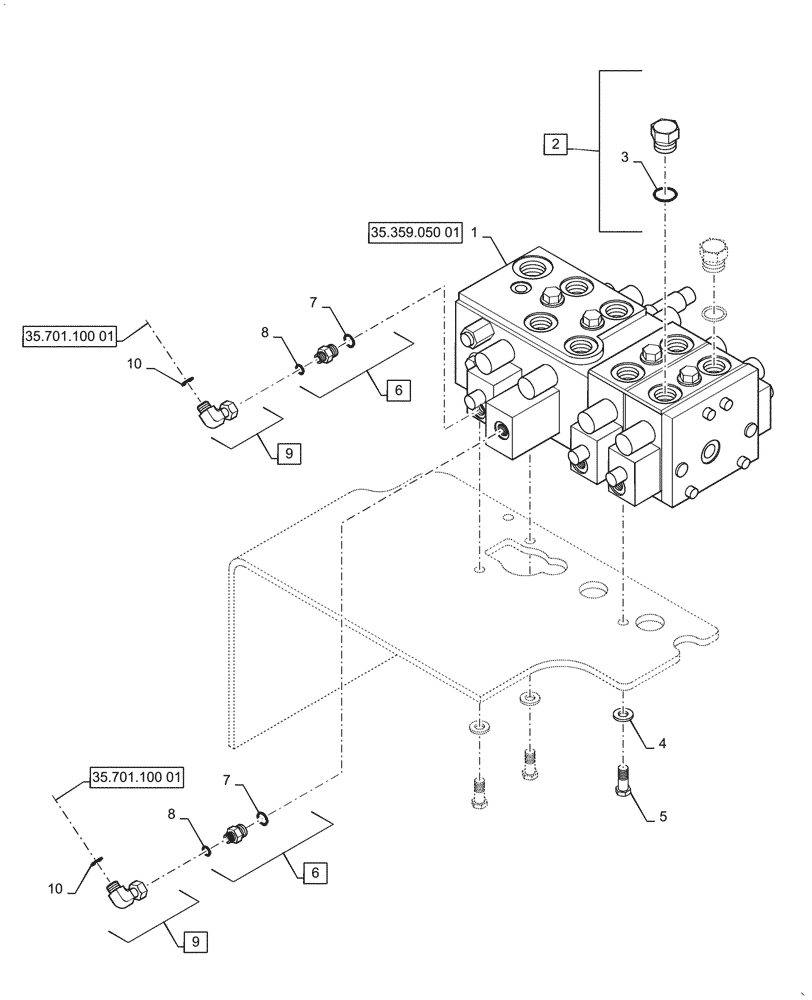

Запчасти Case 521G (35.357.070[01]) - VAR - 734055 - CONTROL VALVE, MOUNTING - 4 SPOOL, Z-BAR / XR (35) - HYDRAULIC SYSTEMS

1

87307984

HYDRAULIC VALVE

Assy, 4 Spool, Z-Bar / XR / XT

1шт.

2

220068A1

PLUG,M27 x 2, ORB

Incl 3

2шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

6

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 7 - 8

2шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

8

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

9

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 10

2шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.
