Запчасти Case 521G (35.300.030) - HYDRAULIC OIL RESERVOIR & COOLING FRAME ASSEMBLY (35) - HYDRAULIC SYSTEMS

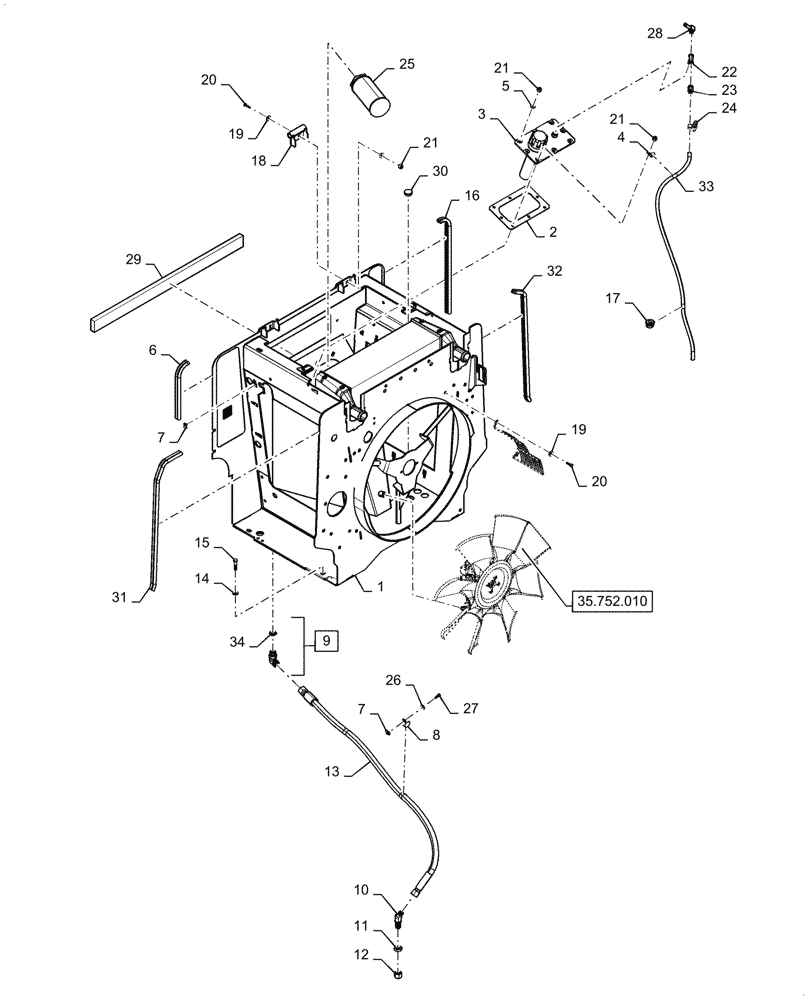

Схема запчастей Case 521G - (35.300.030) - HYDRAULIC OIL RESERVOIR & COOLING FRAME ASSEMBLY (35) - HYDRAULIC SYSTEMS
35.752.010
25
1
27
31
3
34
22
30
15
5
21
8
18
19
19
32
7
9
21
4
26
28
20
23
16
11
24
10
13
21
7
29
12
33
14
17
20
6
2

Артикул

Название

Примечание

Количество

1

47946879

FRAME

Cooling Frame

1шт.

2

379587A2

GASKET

Hydraulic Reservoir

1шт.

3

8606005

CAP

Hydraulic Reservoir

1шт.

4

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

6

394866A1

SEAL

Hood, Front

1шт.

7

84346910

SPRING NUT,M8

16шт.

8

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

9

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 34

1шт.

10

218-717

ELBOW,45 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

11

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

12

218-335

CAP,37 Degree, 1 1/16"-12

Tank Drain

1шт.

13

84352763

FLEXIBLE HOSE

Hydraulic Tank Drain, 1404mm L

1шт.

14

895-15012

WASHER,M12 x 28 x 2.5

4шт.

15

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

16

394867A1

SEAL

Hood, Front

1шт.

17

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

18

47698130

BRACKET

Hinge

2шт.

19

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

20

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

22

217-1142

TEE,3/8"-18 Female x 3/8"-18 Male Br

1шт.

23

8606006

VALVE, CHECK

Hydraulic Tank

1шт.

24

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

25

L128515

STRAINER ELEMENT

Hydraulic Filter

1шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

28

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

29

47700376

SEAL

Cooling Frame, Foam

1шт.

30

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

31

47596187

RUBBER SEAL

Hood, Front

1шт.

32

47596189

RUBBER SEAL

Hood, Front

1шт.

33

408523A1

HOSE

Hydraulic Tank Breather, 9.5mm ID x 1630mm L

1шт.

34

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Выбрано товаров: 34
