(35.204.030) - VAR - 734055 - SOLENOID VALVE, ASSY - EH CONTROL, 4 SPOOL

Запчасти Case 521G (35.204.030) - VAR - 734055 - SOLENOID VALVE, ASSY - EH CONTROL, 4 SPOOL (35) - HYDRAULIC SYSTEMS

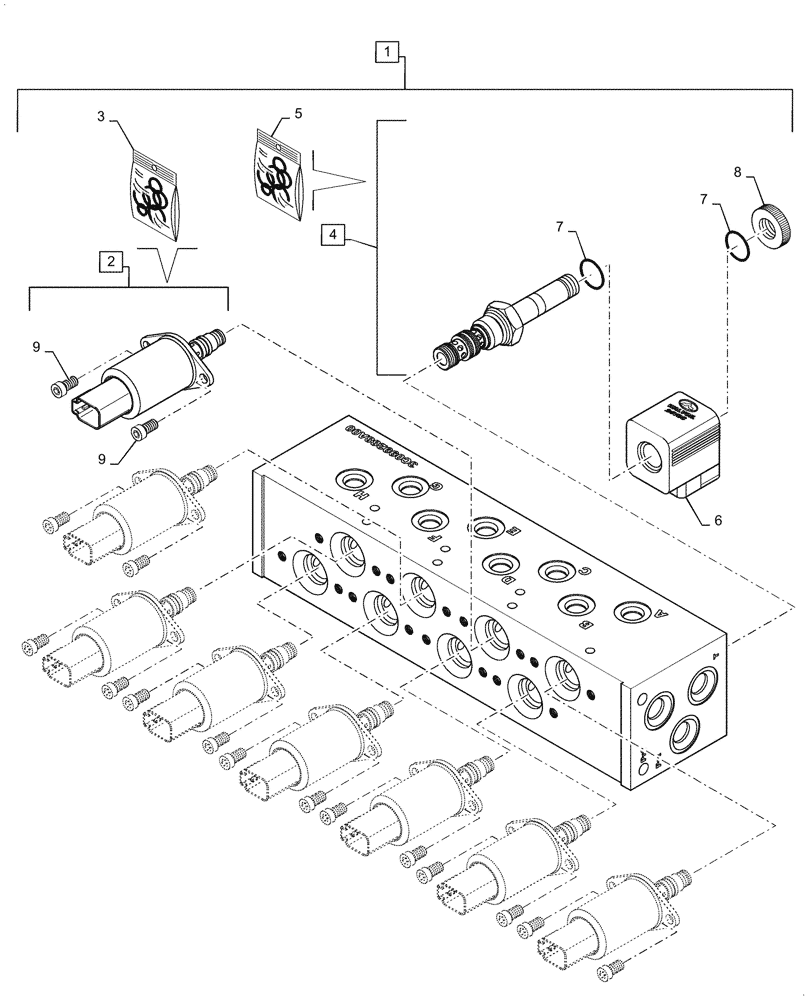

Схема запчастей Case 521G - (35.204.030) - VAR - 734055 - SOLENOID VALVE, ASSY - EH CONTROL, 4 SPOOL (35) - HYDRAULIC SYSTEMS
9
8
4
5
2
3
7
6
7
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47718796

VALVE

Assy, Incl 2 - 9

1шт.

2

47902130

VALVE

Proportional Solenoid Valve, Incl 9

8шт.

3

47902131

SEAL KIT

Proportional Solenoid Valve

1шт.

4

47902132

CONTROL VALVE

Direction Control Valve

1шт.

5

47902133

SEAL KIT

Direction Control Valve

1шт.

6

47902134

COIL

24V DC, Direction Control Valve

1шт.

7

47902135

O-RING

Direction Control Valve Coil

1шт.

8

47902136

NUT

Direction Control Valve Coil

1шт.

9

NSS

NOT SOLD SEPARAT

Incl in 2

16шт.
