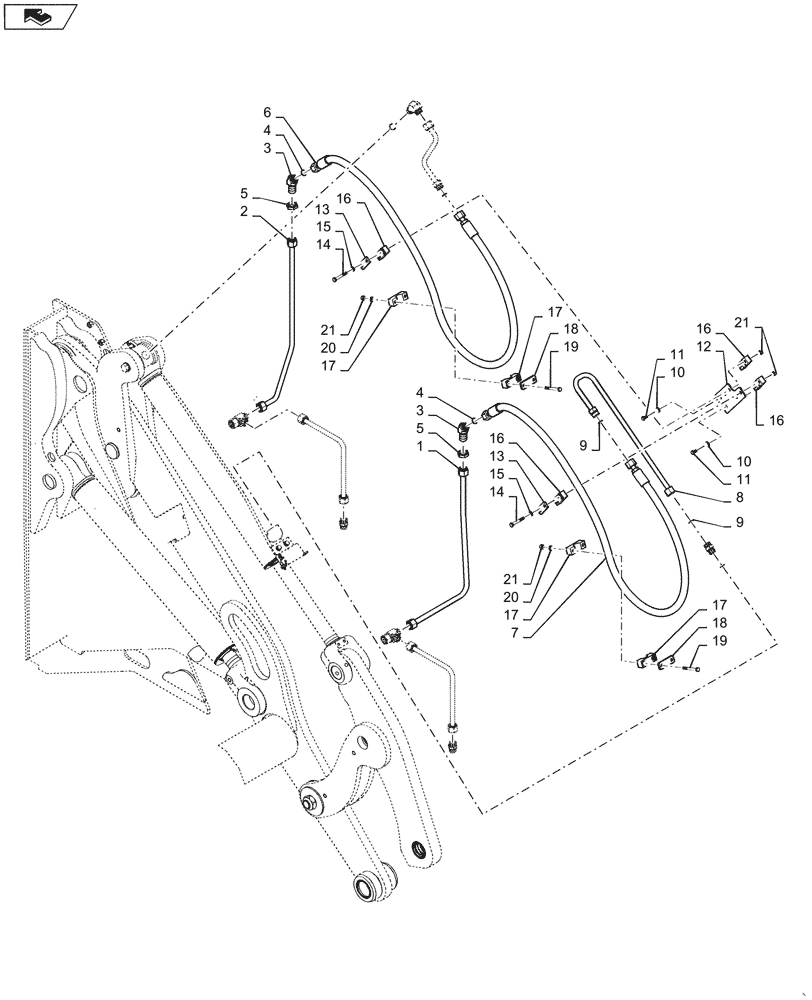

Запчасти Case 521G (35.100.020[02]) - LOADER CONTROL LINES, XT (35) - HYDRAULIC SYSTEMS

1

87447924

HYD TUBE,19.05 mm OD

XT Tilt Rod Left Plated

1шт.

2

87480860

HYD TUBE,19.05 mm OD x 682, 283 mm L

XT Tilt Head Left Plated

1шт.

3

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

701-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

6

87304893

HOSE ASSY.,19.05mm ID x 2175mm L, SAE 100R12

XT Tilt Base

1шт.

7

87304892

HOSE ASSY.,19.05mm ID x 2255mm L, SAE 100R12

XT Tilt Rod

1шт.

8

87447930

HYD TUBE,19.05 mm OD

XT Tilt Rod Left, Incl 9

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

11

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

12

87447892

BRACKET

XT Tilt Tubes Left CE Gray

1шт.

13

367658A1

PLATE

Clamp Cover

1шт.

14

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

16

379374A1

BLOCK

1шт.

17

87452747

CLAMP,33.4mm ID

Tube Mounting

4шт.

18

8500858

PLATE

Clamp Cover

4шт.

19

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

8шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
