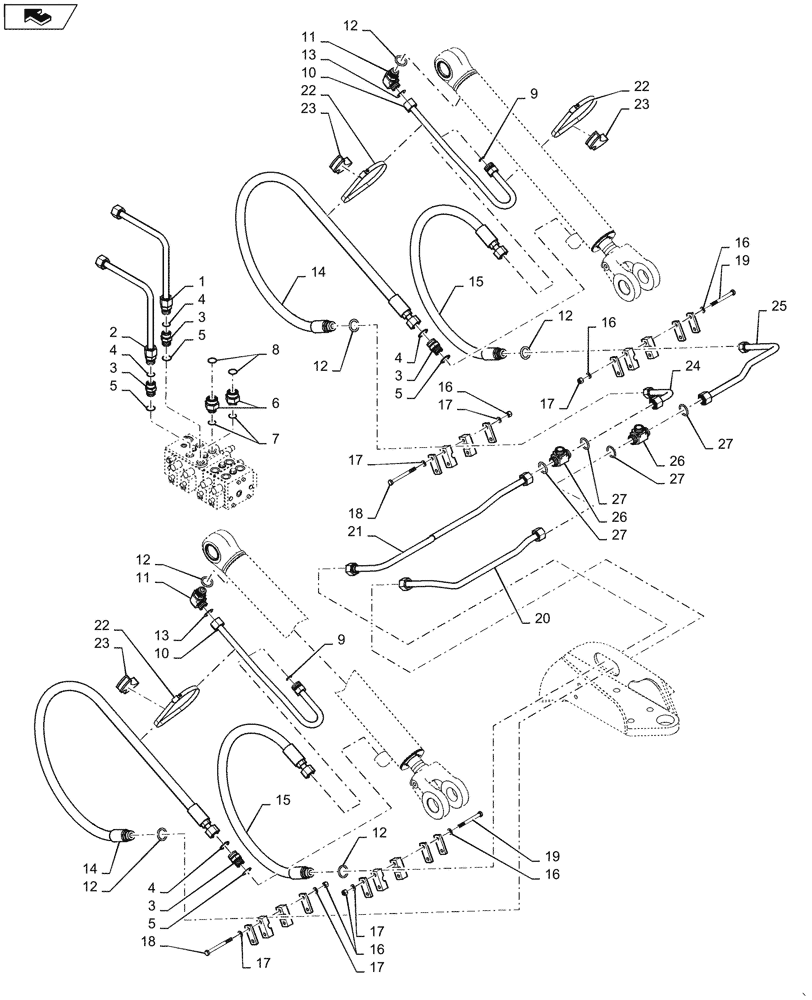

Запчасти Case 521G (35.100.020[01]) - LOADER CONTROL LINES, XT (35) - HYDRAULIC SYSTEMS

1

404363A1

TUBE

XT Tilt Rod Plated

1шт.

2

404353A1

TUBE

XT Tilt Head Plated

1шт.

3

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 4 - 5

6шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

6

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 7 - 8

2шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

8

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

10шт.

10

87448539

HYD TUBE,19.05 mm OD

Lift Cylinder Plated

2шт.

11

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 12 - 13

4шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

14

391259A1

HOSE ASSY.,19.05mm ID x 1746mm L

XT Lift

2шт.

15

87448546

HOSE ASSY.

XT Lift Head

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

18

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

19

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

20

8606058

TUBE,19.05 mm OD x 454.5, 185 mm L

Lift Head End Right Plated

1шт.

21

87448537

HYD TUBE,19.05 mm OD

Lift Rod End Right Plated

1шт.

22

214-1488

HOSE CLAMP,130.05mm - 152.4mm

4шт.

23

391133A1

CLAMP

4шт.

24

8606062

TUBE,19.05 mm OD x 127, 87.5 mm L

Lift Rod End Left Plated

1шт.

25

8606056

TUBE,19.05 mm OD x 185, 373.5 mm L

Lift Head Left Plated

1шт.

26

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Incl 27

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
