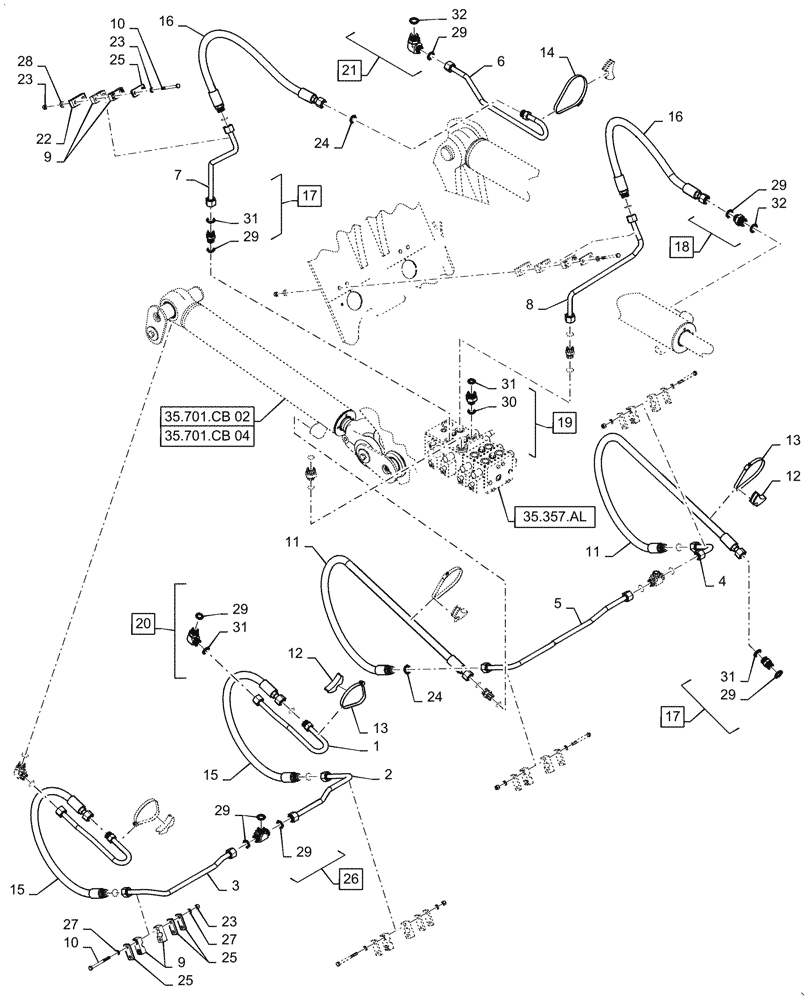

Запчасти Case 521G (35.100.010[01]) - LOADER CONTROL LINES, Z-BAR AND XR (35) - HYDRAULIC SYSTEMS

1

84577376

RIGID TUBE

Lift Cylinder Supply, Plated

2шт.

2

8606056

TUBE,19.05 mm OD x 185, 373.5 mm L

Lift Head End, LH, Plated

1шт.

3

8606058

TUBE,19.05 mm OD x 454.5, 185 mm L

Lift Head End, RH, Plated

1шт.

4

8606062

TUBE,19.05 mm OD x 127, 87.5 mm L

Lift Rod End, LH, Plated

1шт.

5

8606064

TUBE,19.05 mm OD x 740.4, 181.4 mm L

Lift Rod End, RH, Plated

1шт.

6

84576167

RIGID TUBE

Assy, Tilt Cylinder, Tilt Head End

1шт.

7

404163A1

TUBE

Tilt Head End

1шт.

8

8605914

TUBE,19.05 mm OD x 448, 225 mm L

Tilt Rod End

1шт.

9

379374A1

BLOCK

Tube Mounting

2шт.

10

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

11

391053A1

HOSE ASSY.

Lift Cylinder

2шт.

12

391133A1

CLAMP

Saddle, Tube to Cylinder Mount

5шт.

13

214-1488

HOSE CLAMP,130.05mm - 152.4mm

4шт.

14

214-1492

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

1шт.

15

86983384

HOSE,19.05mm ID x 1046mm L

Lift Head

2шт.

16

391054A1

HOSE ASSY.

Tilt Cylinder

2шт.

17

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 29, 31

4шт.

18

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 29, 32

1шт.

19

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 30, 31

2шт.

20

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 29, 31

2шт.

21

391056A1

ELBOW

Incl 29, 32

1шт.

22

87324906

SPACER

Tube Mounting

2шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

9шт.

25

367658A1

PLATE

Clamp Cover

2шт.

26

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Incl 29

2шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

28

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

29

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

14шт.

30

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

31

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

8шт.

32

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.
