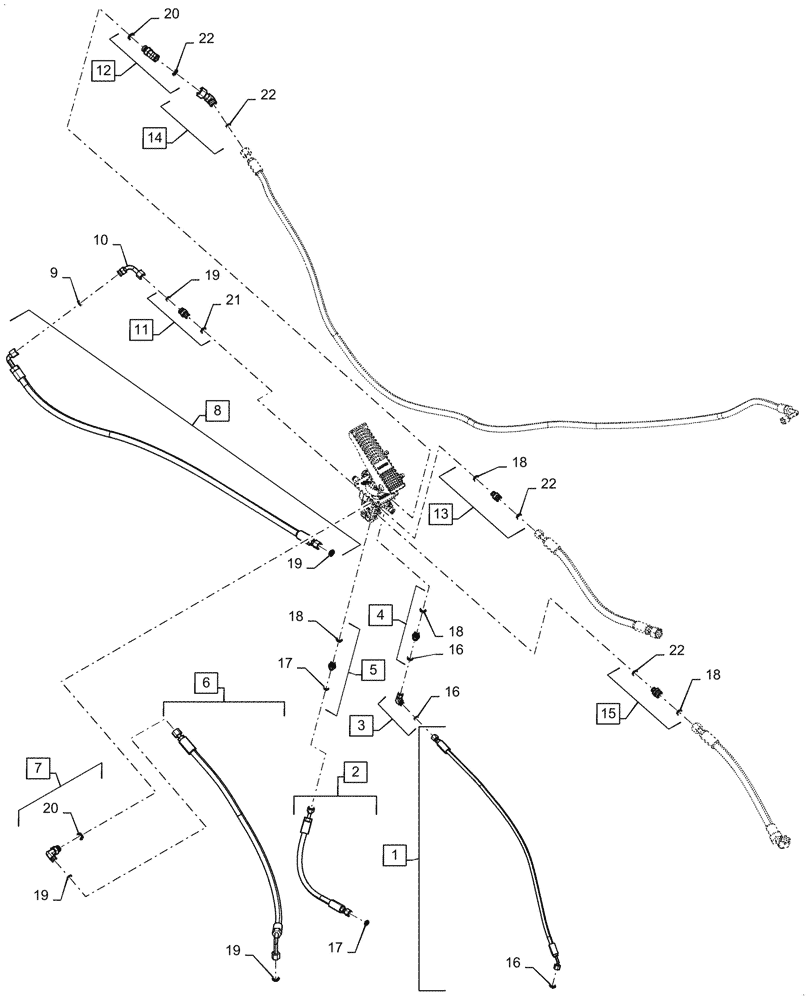

Запчасти Case 521G (33.202.060) - VAR - 424224 - MAIN HYDRAULIC BRAKE, PEDAL FITTINGS (33) - BRAKES & CONTROLS

1

47675143

HOSE

1050mm L, Incl 16

1шт.

2

47857576

HOSE

460mm L, Incl 17

1шт.

3

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 16

1шт.

4

84294527

HYD CONNECTOR,M16 x 1.5 ORB x 9/16" - 18 ORFS

Incl 16, 18

1шт.

5

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 17,18

1шт.

6

47863942

HOSE

944mm L, Incl 19

1шт.

7

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 19, 20

1шт.

8

47675145

HOSE

Return to Tank, 1490mm L, Incl 19

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

47672852

TUBE

Brake to Tank, 99mm L

1шт.

11

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 19, 21

1шт.

12

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 20, 22

1шт.

13

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 18, 22

1шт.

14

84214050

45 ELBOW,1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 22

1шт.

15

87389189

HYD CONNECTOR,12.5 - 14 ORFS x 7 - 14 ORB

Incl 18, 22

1шт.

16

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

18

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

20

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.
