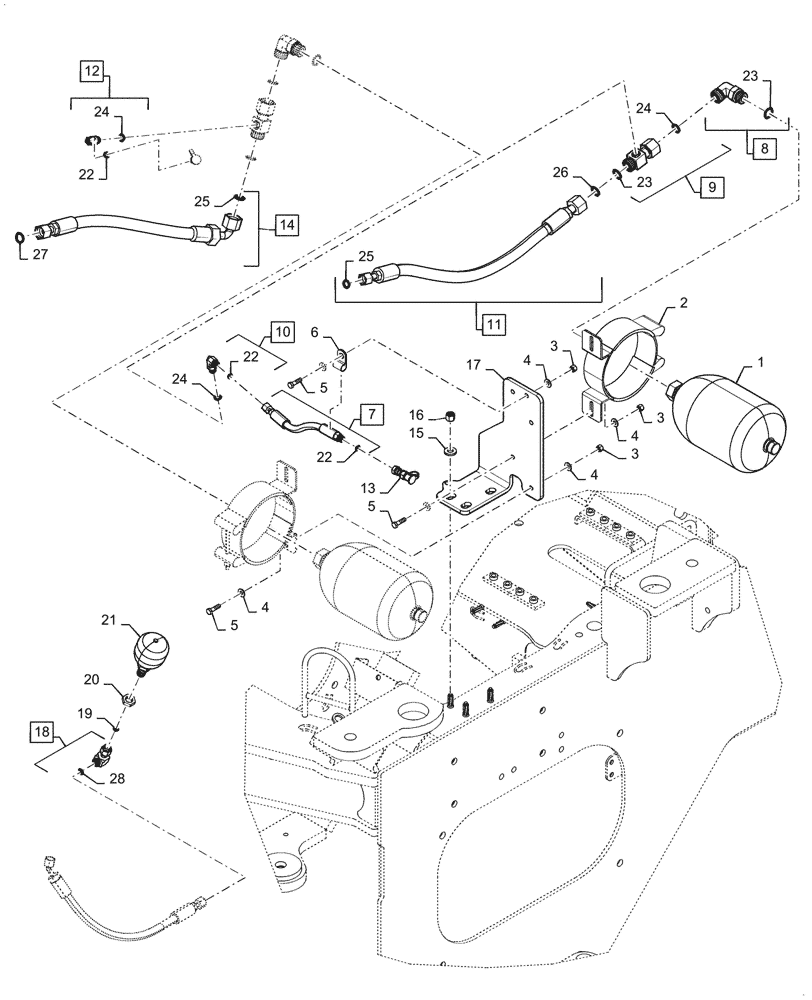

Запчасти Case 521G (33.202.050) - VAR - 424224 - MAIN HYDRAULIC BRAKE, ACCUMULATORS (33) - BRAKES & CONTROLS

1

87728740

ACCUMULATOR

Service Brake

2шт.

2

8501315

CLAMP,167mm - 175mm

2шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

5

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

5шт.

6

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

7

47884382

HOSE

Remote Diagnostic, 290mm L, Incl 22

1шт.

8

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 23

1шт.

9

372033A1

FITTING

Right Brake Accumulator, Incl 23, 24

2шт.

10

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 22, 24

1шт.

11

47670346

HOSE

Right Brake Accumulator, 681mm L, Incl 25, 26

1шт.

12

700-392

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 22, 24

1шт.

13

190117A1

COUPLING

Diagnostic

2шт.

14

48056711

HOSE

Front Brake Accumulator, 576mm L, Incl 25, 27

1шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

17

47857657

BRACKET

Brake Accumulator

1шт.

18

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 28

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

701-909

NUT,11/16" - 16

1шт.

21

8500209

ACCUMULATOR

Parking Brake

1шт.

22

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

23

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

24

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

25

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

26

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
