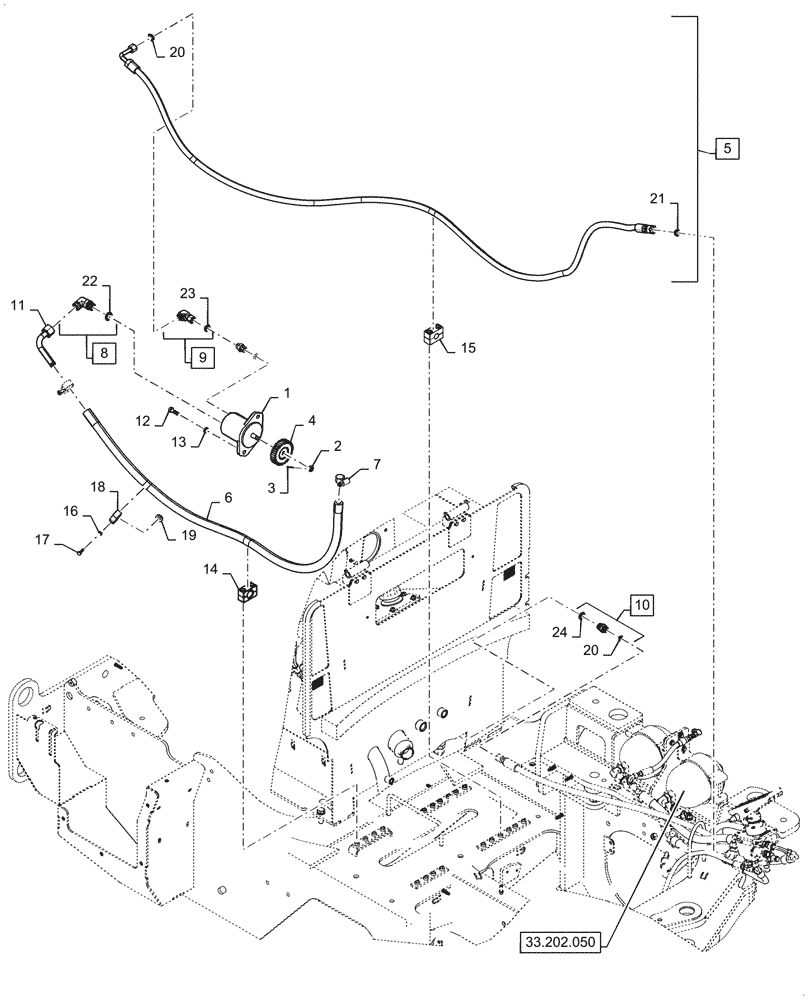

Запчасти Case 521G (33.202.040) - VAR - 424224 - MAIN HYDRAULIC BRAKE, PUMP & LINES (33) - BRAKES & CONTROLS

1

87402776

HYDRAULIC PUMP,14 CC

1шт.

2

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

3

432-616

COTTER PIN,3/32" x 1"

1шт.

4

86985892

GEAR

Accessory Drive

1шт.

5

48039977

HOSE

Brake Pump Pressure, 2975mm L, Incl 20, 21

1шт.

6

47954109

HOSE

Brake Pump Supply, 1516mm L

1шт.

7

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

8

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 22

1шт.

9

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 23

1шт.

10

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 20, 24

2шт.

11

47839136

TUBE

Brake Pump Suction, 170mm L

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

13

892-11012

LOCK WASHER,M12

2шт.

14

372453A1

BLOCK

1шт.

15

8501052

SPECIAL CLAMP

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

18

9603626

CLAMP

1шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
