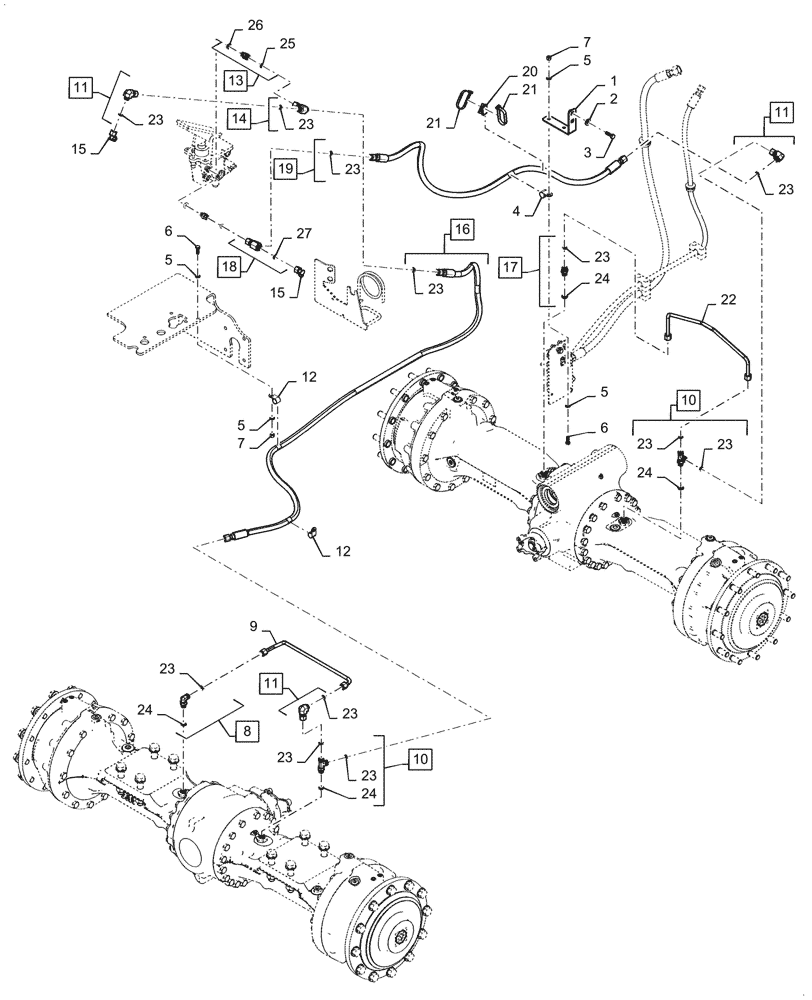

Запчасти Case 521G (33.202.020) - VAR - 782122 - BRAKE LINE INSTALLATION (33) - BRAKES & CONTROLS

1

84403440

BRACKET

Brake Damping Rear

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

4

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 23, 24

1шт.

9

87552628

TUBE,10.2 mm ID x 12.7 mm OD x 480, 50 mm L

1шт.

10

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 23, 24

2шт.

11

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 23

3шт.

12

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

13

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 25, 26

2шт.

14

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 23

1шт.

15

190316A1

COUPLING

Diagnostic

2шт.

16

47674801

HOSE

Front Axle Brake, 2758mm L, Incl 23

1шт.

17

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 23, 24

1шт.

18

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 27

1шт.

19

47996645

HOSE

Rear Axle Brake, 1970mm L, Incl 23

1шт.

20

84266053

TUBE SPACER

1шт.

21

84266050

CABLE TIE,384mm L, Polyamide

2шт.

22

87628241

TUBE,10.22 mm ID x 12.7 mm OD x 480, 174 mm L

Rear Axle

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

25

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

26

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
