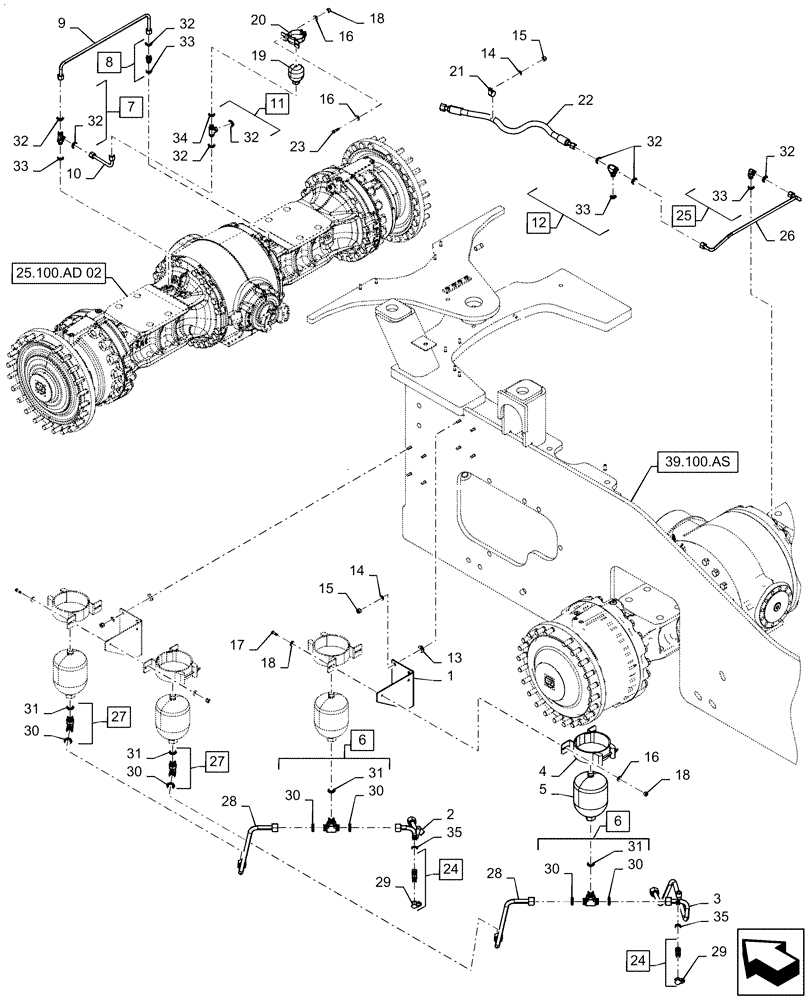

Запчасти Case 1121G (33.110.010[03]) - VAR - 424775 - BRAKE ACCUMULATOR INSTALLATION (33) - BRAKES & CONTROLS

1

84305573

MOUNTING PLATE

Accumulator to Chassis

2шт.

2

47434019

RIGID TUBE

Front Accumulator

1шт.

3

47359718

RIGID TUBE

Rear Accumulator

1шт.

4

8501315

CLAMP,167mm - 175mm

4шт.

5

84353396

ACCUMULATOR

Service Brake

4шт.

6

86579712

TEE

Incl 30, 31

2шт.

7

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 32, 33

1шт.

8

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 32, 33

1шт.

9

84306483

HYD TUBE

Front Axle Brake

1шт.

10

84306523

TUBE

Front Brake Supply

1шт.

11

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

Incl 32, 34

1шт.

12

86579710

TEE,13/16"-16 ORFS x M18 x 1.5 ORB Br

Incl 32, 33

1шт.

13

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

12шт.

17

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

19

84393492

ACCUMULATOR

Brake Damping

1шт.

20

84272713

CLAMP,73mm - 79mm

1шт.

21

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

22

84327092

HOSE ASSY.

Rear Brake Supply

1шт.

23

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

24

190117A1

COUPLING

Diagnostic, Incl 29

2шт.

25

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 32, 33

1шт.

26

84327083

HYD TUBE

Rear Axle Brake

1шт.

27

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 30, 31

2шт.

28

47359720

RIGID TUBE

Front Accumulator

2шт.

29

H434163

DUST CAP

2шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

12шт.

31

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

8шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

16шт.

33

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

8шт.

34

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

35

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.
