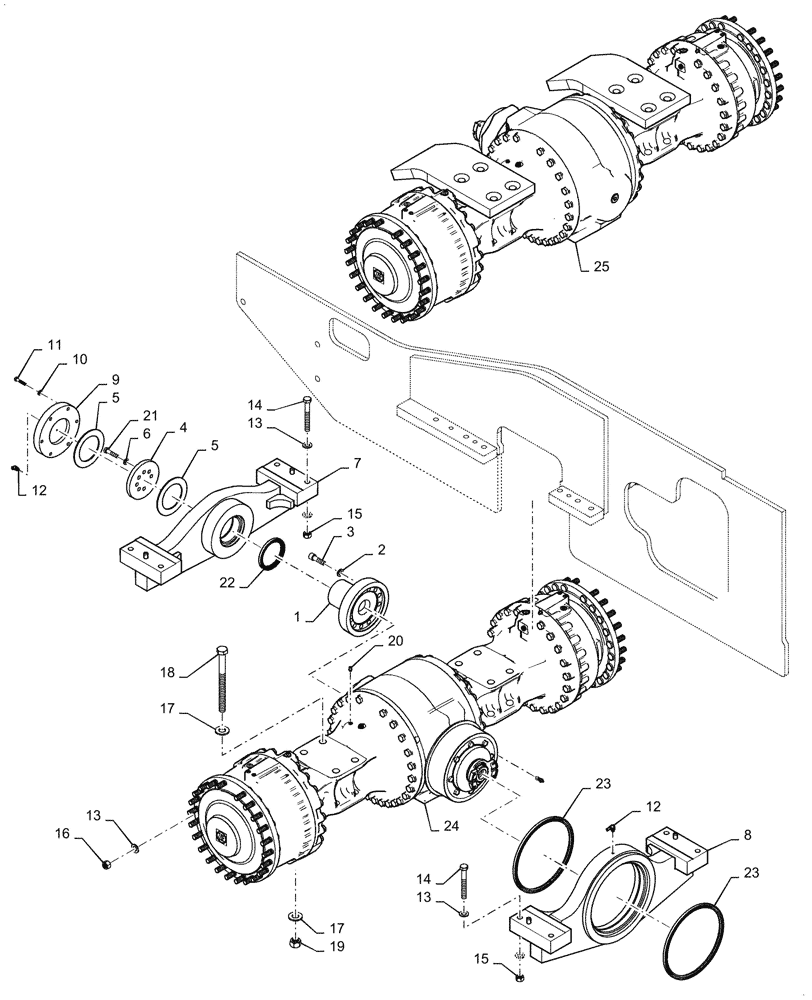

Запчасти Case 1121G (25.100.010[02]) - FRONT AND REAR AXLE INSTALLATION (25) - FRONT AXLE SYSTEM

1

84353609

BEARING ASSY

Bearing

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

3

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

12шт.

4

84305637

SPACER

1шт.

5

84305638

THRUST WASHER

2шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

7

84305622

TRUNNION

Rear

1шт.

8

84305629

TRUNNION

Front

1шт.

9

84305639

REAR COVER

Trunnion

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

11

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

6шт.

12

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

2шт.

13

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

108шт.

14

827-22170

BOLT,Hex, M22 x 2.5 x 170mm, Cl 10.9

8шт.

15

829-1422

NUT,M22 x 2.5, Cl 10

8шт.

16

84227695

NUT

92шт.

17

87036956

WASHER,32.8mm ID x 66.5mm OD x 6mm Thk

16шт.

18

86508625

BOLT,Hex, M30 x 340mm, Cl 10.9

8шт.

19

829-1430

NUT,M30, Cl 10

8шт.

20

8603201

BREATHER

Valve

2шт.

21

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

8шт.

22

84477334

SEAL

Rear

1шт.

23

84477331

SEAL

Front

2шт.

24

84259024

REAR AXLE

Standard and HD

1шт.

25

47764613

FRONT AXLE

Standard

1шт.

25

47764612

FRONT AXLE

HD

1шт.
