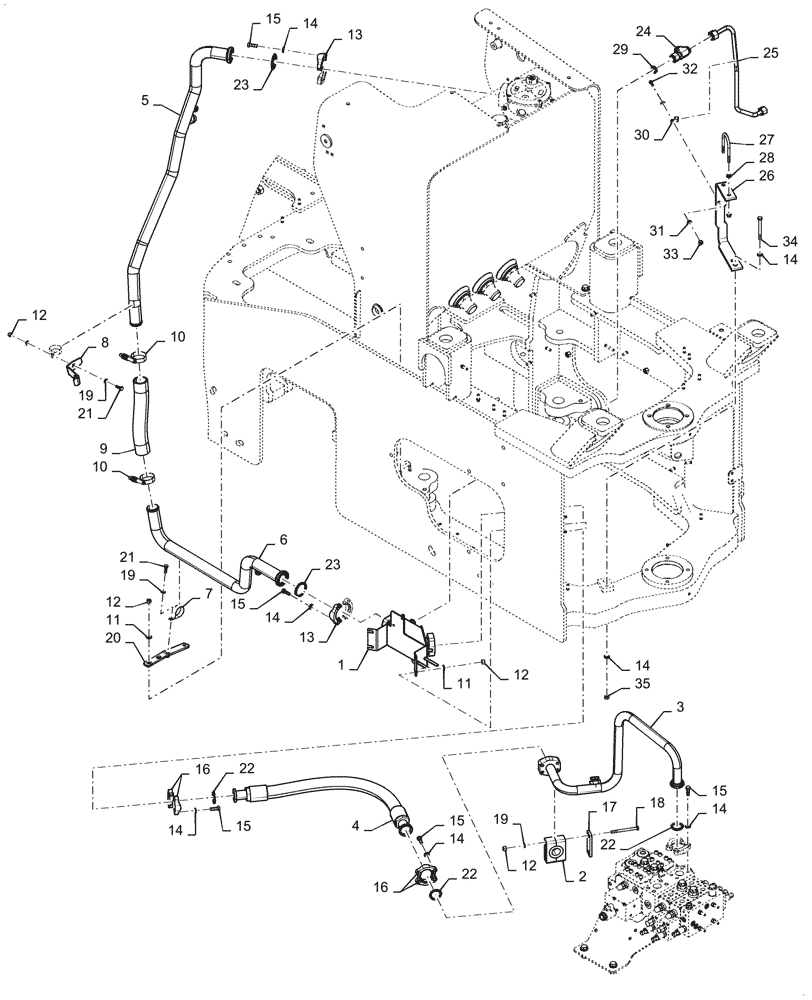

Запчасти Case 1121G (21.109.020) - HOSE RETURN LINE (21) - TRANSMISSION

1

47752362

MANIFOLD

Return

1шт.

2

84258057

BLOCK

1шт.

3

84425587

HYD TUBE

Return Valve

1шт.

4

84364941

HOSE ASSY.

to Loader Valve

1шт.

5

47364060

TUBE

Filter

1шт.

6

84305561

TUBE

Manifold to Tank

1шт.

7

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

8

84528082

BRACKET

Return Tube Support

1шт.

9

84305563

HOSE,50.8mm ID x 384mm L, SAE 100R4

Manifold to Tank

1шт.

10

254026A1

HOSE CLAMP,44.45mm - 66.67mm

1шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

13

A14141

FLANGE

1шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

15

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

16

A14157

FLANGE

1шт.

17

87398739

PLATE

1шт.

18

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

20

84390767

BRACKET, SUPPORTING

1шт.

21

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

22

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

23

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

24

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1шт.

25

47359711

TUBE

1шт.

26

47520947

BRACKET

Tube Mount

1шт.

27

87349269

U-BOLT

1шт.

28

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

29

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

30

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

32

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

33

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

34

827-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

1шт.

35

829-1412

NUT,M12, Cl 10.9

1шт.
