(90.151.050) - VAR - 734065 - CAB COAT HOOK AND FLOOR MAT

Запчасти Case 1121G (90.151.050) - VAR - 734065 - CAB COAT HOOK AND FLOOR MAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

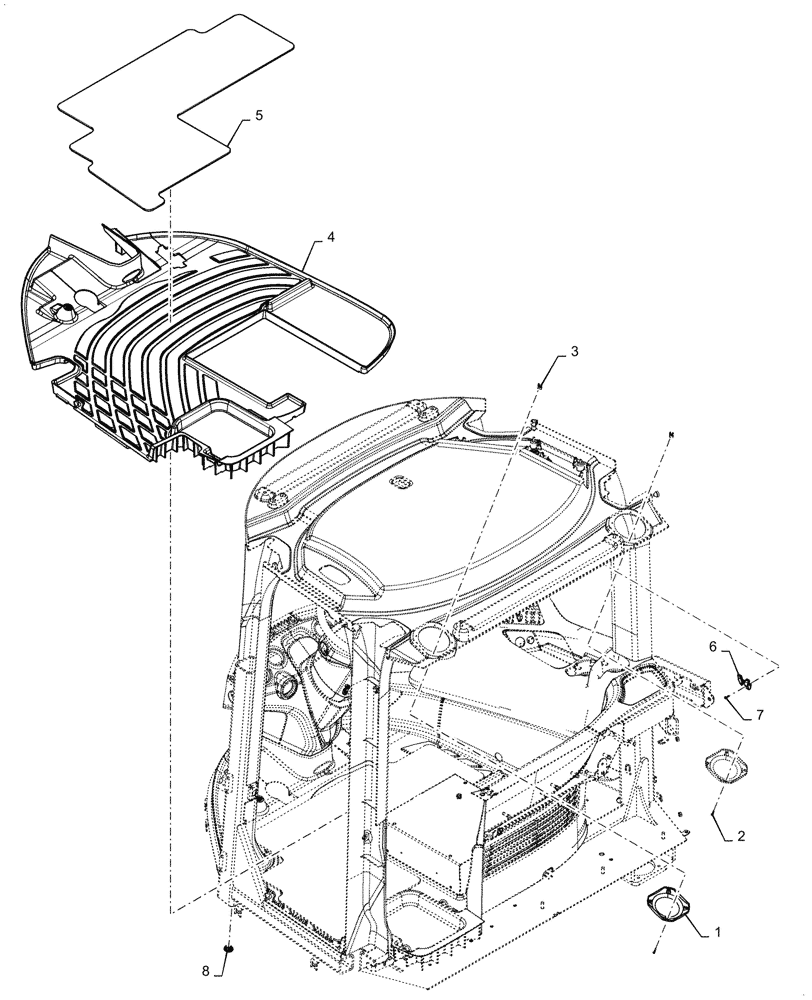

Схема запчастей Case 1121G - (90.151.050) - VAR - 734065 - CAB COAT HOOK AND FLOOR MAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
7
1
5
3
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

187281A1

COVER

Grill Remote

2шт.

2

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

3

302862A1

SPRING NUT,4.2 Thread

8шт.

4

47619845

FLOOR MAT

1шт.

5

47690857

PAD

Floor Protection

1шт.

6

76067422

COAT HOOK

1шт.

7

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

2шт.

8

47381606

PLUG

4шт.

Выбрано товаров: 8
