(90.151.010[01]) - VAR - 734058 - 2" SEAT BELT HARDWARE AND MOUNTING

Запчасти Case 1121G (90.151.010[01]) - VAR - 734058 - 2" SEAT BELT HARDWARE AND MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

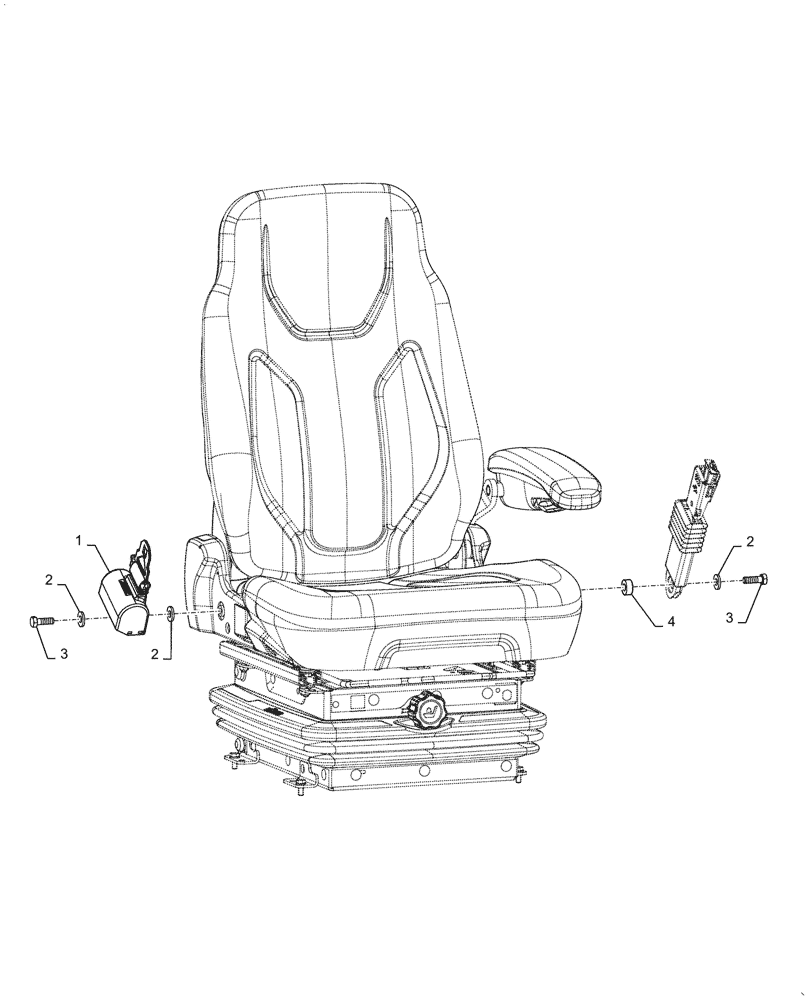

Схема запчастей Case 1121G - (90.151.010[01]) - VAR - 734058 - 2" SEAT BELT HARDWARE AND MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
2
2
3
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47600159

SEAT BELT,2 inch Wide Belt

1шт.

2

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

3

86642317

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

4

47944269

SPACER

1шт.

Выбрано товаров: 4
