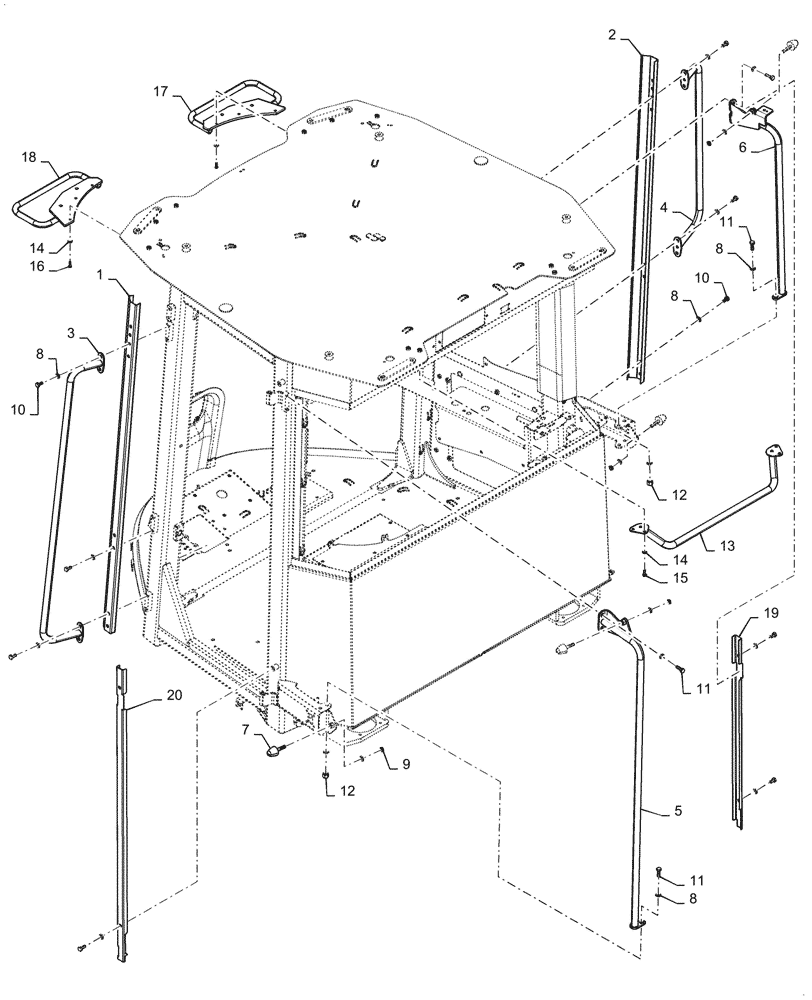

Запчасти Case 1121G (90.150.030) - CAB GRAB RAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47818395

COVER

LH Post

1шт.

2

47861322

COVER

RH Post

1шт.

3

48090617

HANDRAIL

LH Side

1шт.

4

48090604

HANDRAIL

RH Side

1шт.

5

47859105

HANDRAIL

LH

1шт.

6

48090604

HANDRAIL

RH

1шт.

7

76303588

RUBBER BUMPER,M10mm x 47mm L

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

28шт.

9

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

4шт.

10

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

10шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

47861350

HANDLE

Rear Upper Grab

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

15

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

17

47872747

Cab Roof RH

HANDRAIL

1шт.

18

47872749

Cab Roof LH

HANDRAIL

1шт.

19

48088246

RH B-Post

COVER

1шт.

20

48088248

LH B-Post

COVER

1шт.
