(90.124.020) - VAR - 734085 - SEAT, AIR SUSPENSION

Запчасти Case 1121G (90.124.020) - VAR - 734085 - SEAT, AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

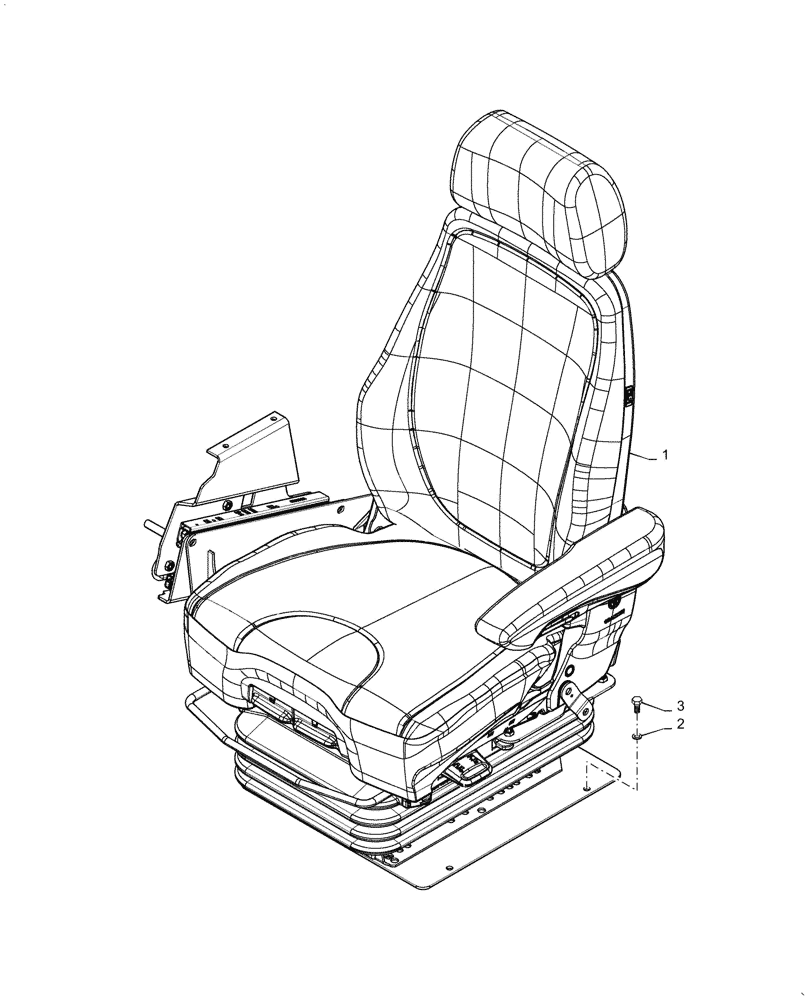

Схема запчастей Case 1121G - (90.124.020) - VAR - 734085 - SEAT, AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48010067

DRIVER SEAT

Premium, Heated, Air Suspension

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

Выбрано товаров: 3
