(90.118.040[01]) - VAR - 734005 - HEATED GLASS MIRRORS

Запчасти Case 1121G (90.118.040[01]) - VAR - 734005 - HEATED GLASS MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

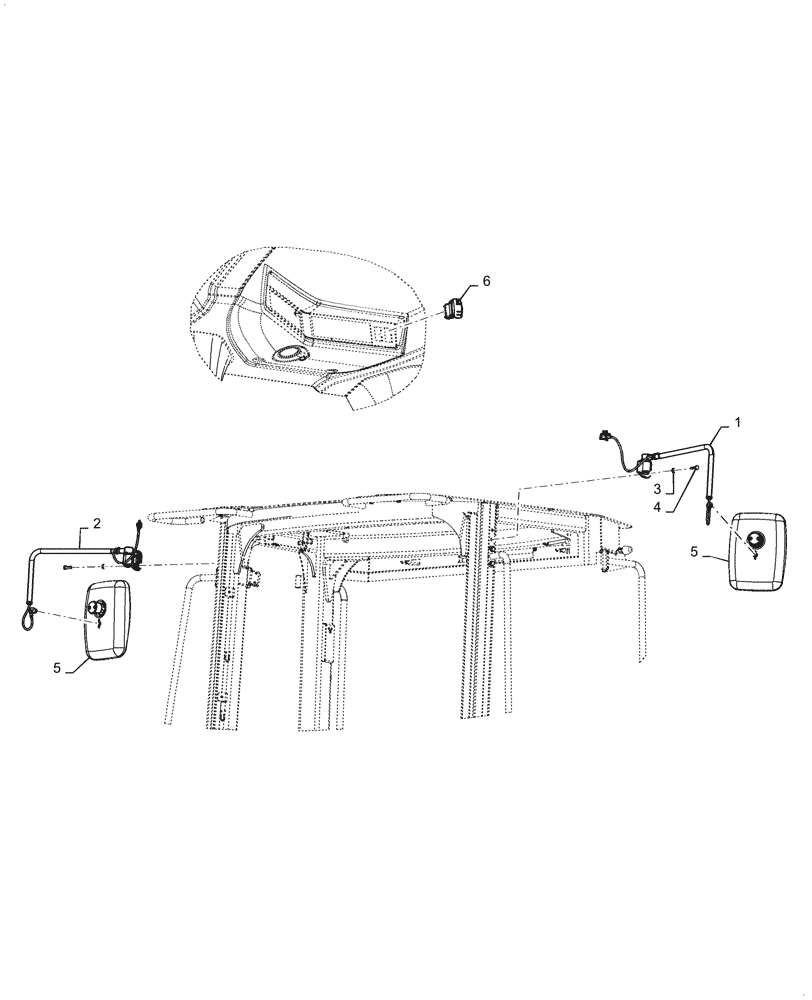

Схема запчастей Case 1121G - (90.118.040[01]) - VAR - 734005 - HEATED GLASS MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
1
3
2
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47924987

MIRROR ARM

LH, Heated

1шт.

2

47924989

MIRROR ARM

RH, Heated

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

5

47972721

MIRROR

Head, Heated, 24V

2шт.

6

47743106

ROCKER SWITCH

Heated Mirrors Switch

1шт.

Выбрано товаров: 6
