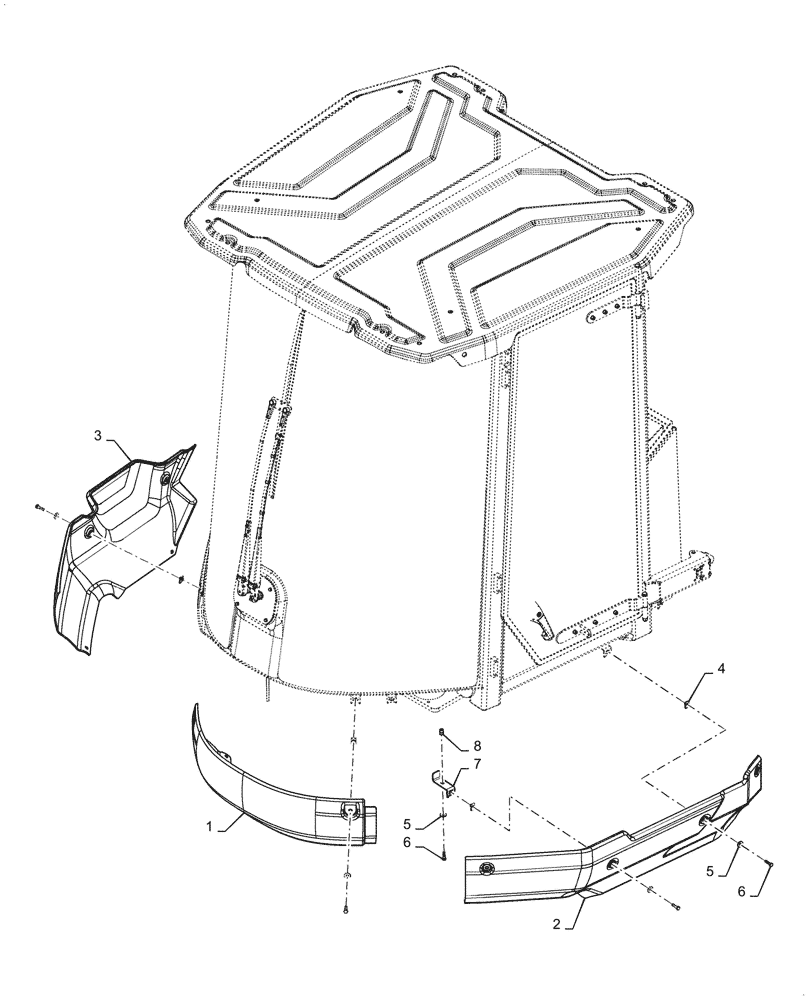

Запчасти Case 1121G (90.116.030) - VAR - X50103X - CAB SKIRTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47737982

SKIRT

Center Skirt, Power Tan

1шт.

1

47737981

SKIRT

Center Skirt, NH Yellow

1шт.

2

47738399

TRIM

LH Skirt, Power Tan

1шт.

2

47737983

SKIRT

LH Skirt, NH Yellow

1шт.

3

47738406

TRIM

RH Skirt, Power Tan

1шт.

3

47905924

TRIM

RH Skirt, NH Yellow

1шт.

4

833-40408

NUT,M8, U

11шт.

5

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

12шт.

6

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

7

NSS

NOT SOLD SEPARAT

Bracket, Cab Skirt

1шт.

8

NSS

NOT SOLD SEPARAT

Riv Nut

1шт.
