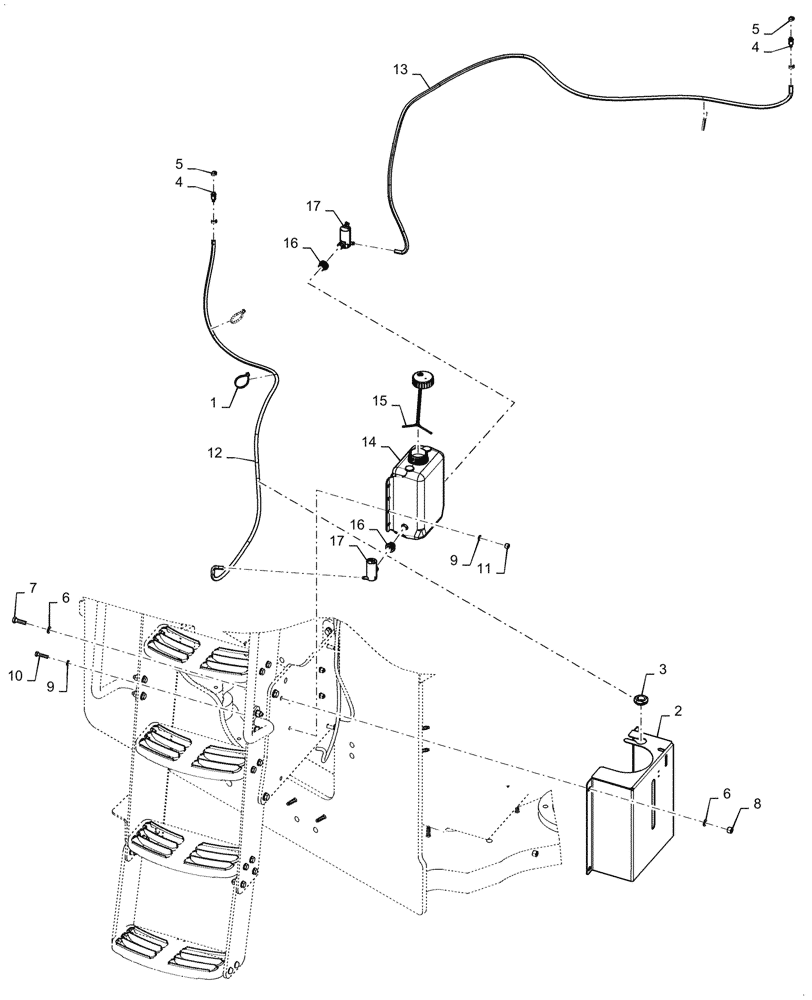

Запчасти Case 1121G (55.518.040) - WINDSHIELD WASHER RESERVOIR (55) - ELECTRICAL SYSTEMS

1

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

2

47412099

COVER

Washer Bottle

1шт.

3

87379691

GROMMET

1шт.

4

84037530

VALVE

2шт.

5

84477330

HOSE CLAMP,8.97mm - 10.11mm

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

10

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

12

84290935

HOSE

1шт.

13

384138A1

HOSE,4.77 mm ID x 102.00 mm

1шт.

14

47416049

TANK

Reservoir

1шт.

15

87439461

CAP

Reservoir, Vented

1шт.

16

47416054

GROMMET

2шт.

17

47416067

PUMP,24V

Washer

2шт.
