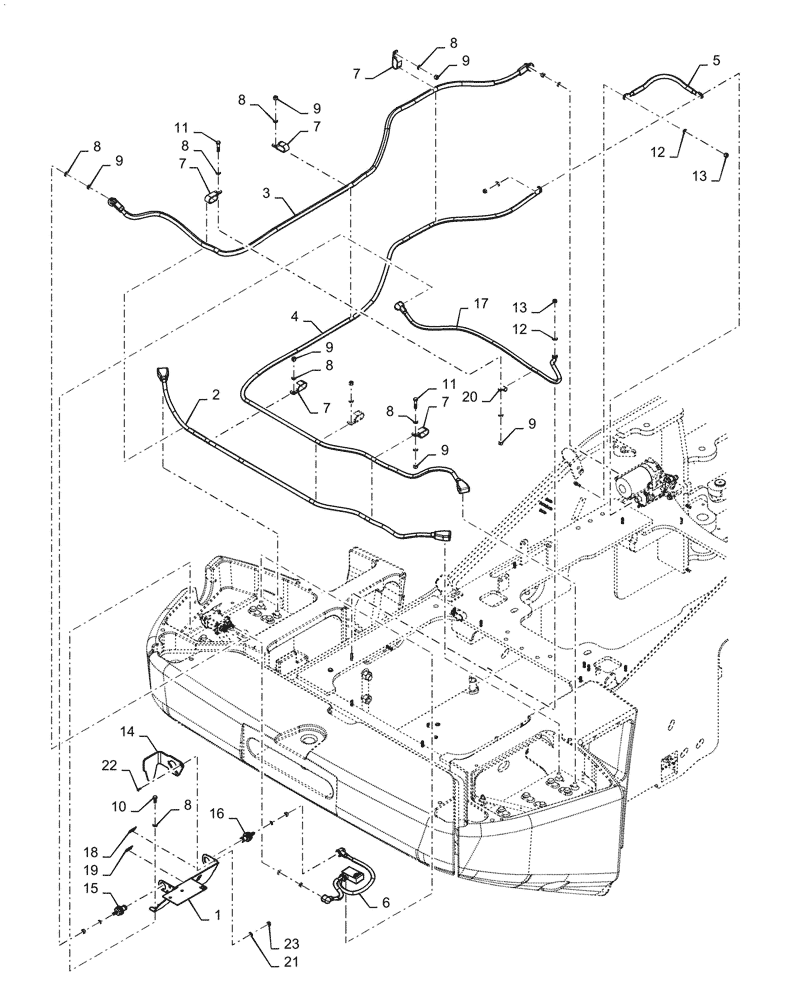

Запчасти Case 1121G (55.302.020[02]) - BATTERY CABLES (55) - ELECTRICAL SYSTEMS

1

47787018

BRACKET

Disconnect Switch

1.0шт.

2

84298728

POS BATTERY CABLE

Positive to Negative

1.0шт.

3

47794362

POS BATTERY CABLE

Positive Isolator to Starter

1.0шт.

4

84477365

CABLE

Negative

1.0шт.

5

84298731

GROUND CABLE,457mm L

Negative to Ground Chassis

1.0шт.

6

47873562

CABLE

Positive to Isolator and Jump Post

1.0шт.

7

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

6.0шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12.0шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

8.0шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2.0шт.

11

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2.0шт.

12

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

3.0шт.

13

253347A1

NUT,Hex, M10 x 1.5

3.0шт.

14

47683809

GUARD

Jump Post

1.0шт.

15

84258928

TERMINAL CONNECTOR

Jump Start, Negative, Long

1.0шт.

16

1964554C1

TERMINAL

Jump Start, Positive, Long

1.0шт.

17

47873544

CABLE

Negative Jump to Chassis Ground

1.0шт.

18

84405137

DECAL

24V Positive

1.0шт.

19

84405148

DECAL

24V Negative

1.0шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1.0шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2.0шт.

22

843-1616

SCREW,Flat , M6 x 16mm, Cl 4.8

2.0шт.

23

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2.0шт.
