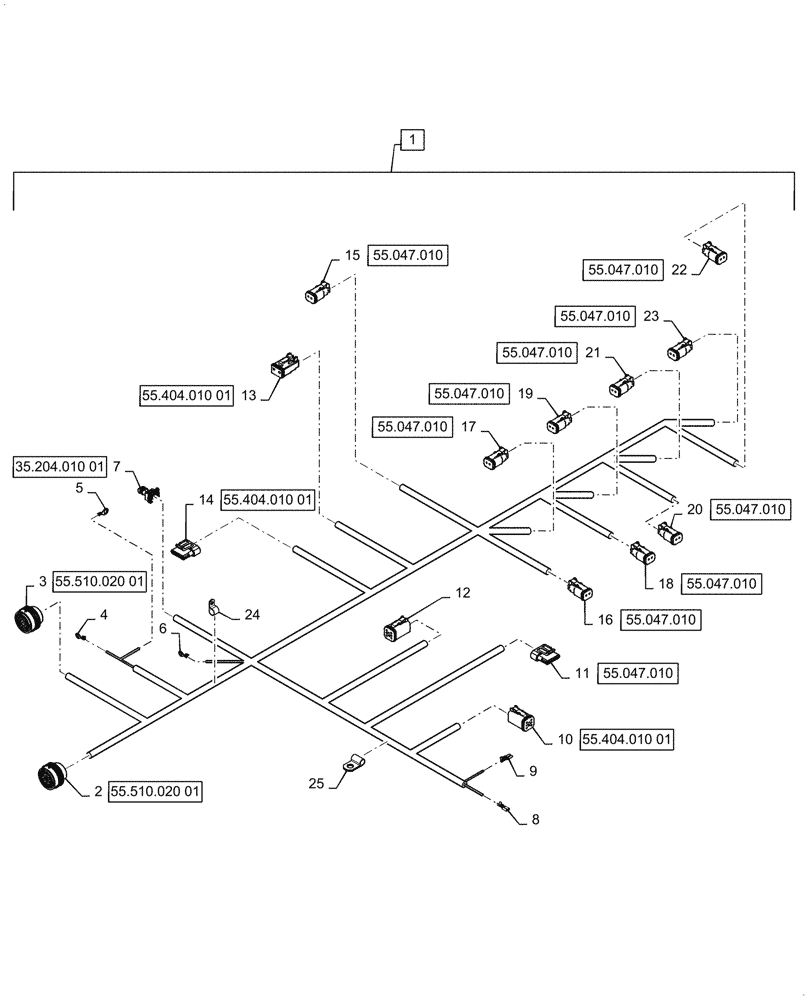

Запчасти Case 1121G (55.100.040[02]) - FRONT CHASSIS HARNESS ASSEMBLY, Z-BAR / XR (55) - ELECTRICAL SYSTEMS

1

47977229

WIRE HARNESS

Front Chassis, Z-BAR, Incl 2 - 25

1шт.

1

47978425

WIRE HARNESS

Front Chassis, XR, Incl 2 - 25

1шт.

2

87704426

ELEC CONNECTOR

Front to Bottom

1шт.

3

87700170

WIRE CONNECTOR

Front to Bottom

1шт.

4

84140737

TERMINAL CONNECTOR

Chassis Ground

1шт.

5

84426126

TERMINAL

Chassis Ground

1шт.

6

84140737

TERMINAL CONNECTOR

Chassis Ground

1шт.

7

84607243

ELEC CONNECTOR,Female, 2 Cavities

Ride Control Solenoid

1шт.

8

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn Ground

1шт.

9

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn Power

1шт.

10

87694109

ELEC CONNECTOR

Front Combo Lamp, Right

1шт.

11

84403598

WIRE CONNECTOR

Boom Angle Sensor

1шт.

12

87711966

PLUG

Front Axle Temperature Sensor

1шт.

13

87694109

ELEC CONNECTOR

Front Combo Lamp, Left

1шт.

14

84403598

WIRE CONNECTOR

Boom Angle Sensor

1шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

Pilot Enable Solenoid

1шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Lower

1шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Dump

1шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Raise

1шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Roll

1шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 1 Left

1шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 1 Right

1шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 2 Left

1шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 2 Right

1шт.

24

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

2шт.

25

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.
