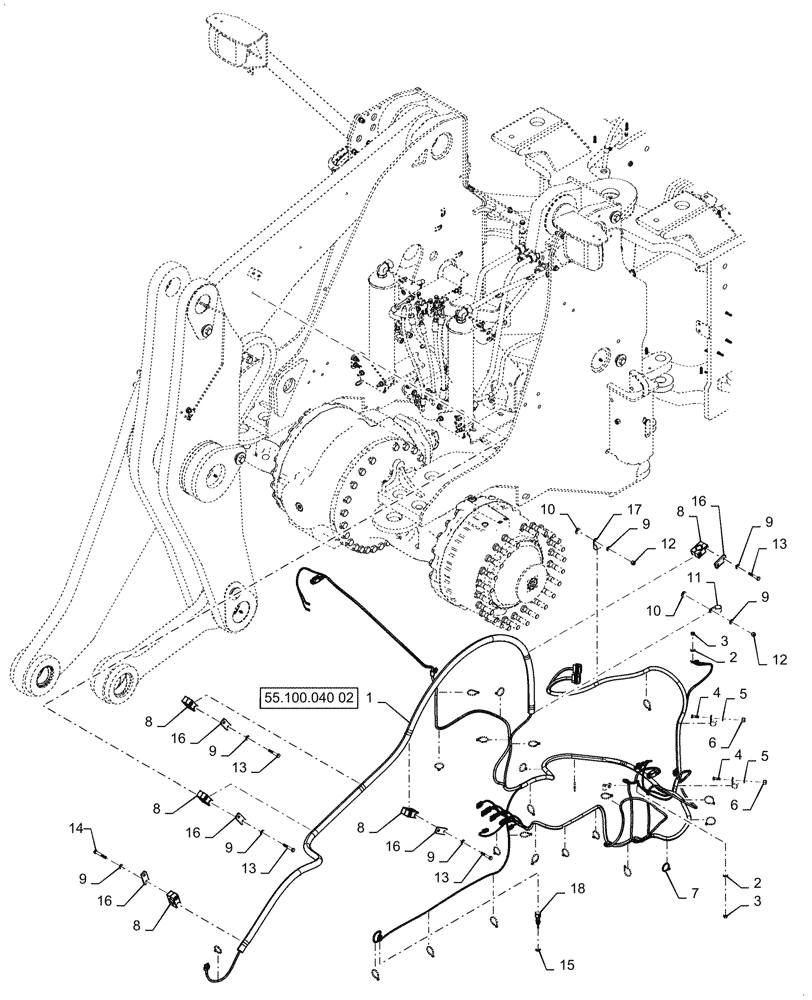

Запчасти Case 1121G (55.100.040[01]) - FRONT CHASSIS HARNESS INSTALLATION, XR (55) - ELECTRICAL SYSTEMS

1

47978425

WIRE HARNESS

Front Chassis

1шт.

2

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

3

253347A1

NUT,Hex, M10 x 1.5

2шт.

4

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

27шт.

8

372453A1

BLOCK

5шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

10

895-15012

WASHER,M12 x 28 x 2.5

2шт.

11

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

8шт.

14

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

15

10260160

SEAL,M10.2 x 14 x 1

1шт.

16

367658A1

PLATE

5шт.

17

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

18

47570307

SENSOR

Temperature

1шт.
