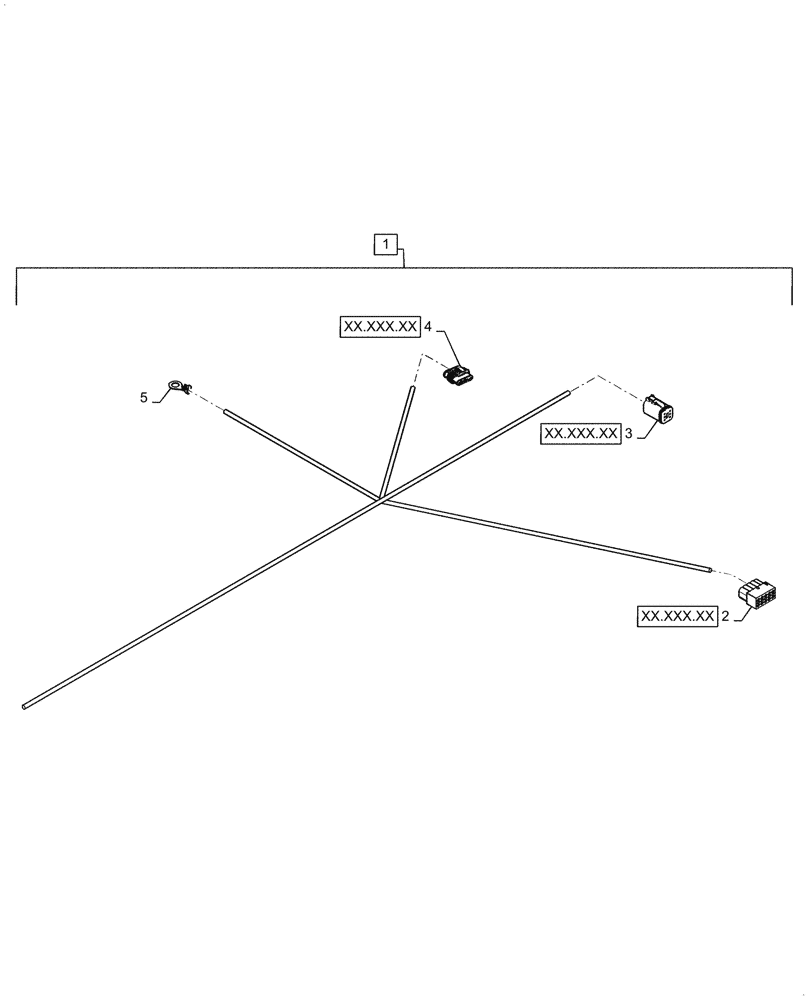

Запчасти Case 1121G (55.100.020[03]) - ENGINE & REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47892780

WIRE HARNESS

Engine & Chassis Harness, Incl 2 - 5

1шт.

2

84159859

ELEC CONNECTOR,Female, 10 Cavities

Hood Lift Switch

1шт.

2

87694668

ELEC CONNECTOR

Cavities, 1 - 3

3шт.

2

82035902

PLUG

Cavities, 4 - 10

7шт.

3

87694112

ELEC CONNECTOR,Female, 6 Pole

Disconnect Switch

1шт.

3

87680656

CONTACT

Cavities, 1, 3 - 6

5шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavity, 2

1шт.

3

87694150

LOCKING TAB,Wedge Lock

Lock

1шт.

4

87687242

ELEC CONNECTOR,4 Way

Isolator

1шт.

4

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Cavities, 1 - 3

3шт.

4

87680691

PLUG

Cavity, 4

1шт.

5

84140737

TERMINAL CONNECTOR

Power Stud

1шт.
